Product image is indicative only and provided as a guide.
Socomec
Socomec ISO Enclosed Isolator, IP 65 Plastic Grey, Handle - Red, 6P 63A
- Item No.:
- ISO663PYS
- Product Range:
- ISO
Download product datasheet

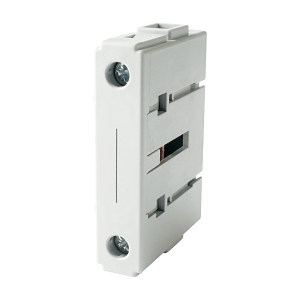

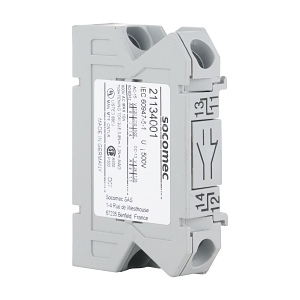

Popular Accessories
Electrical
- Rated operating voltage Ue
- 400-690 V
- Rated uninterrupted current Iu
- 63 A
- Number of poles
- 6
- Frequency
- 50/60 Hz
- Rated operation current Ie at AC-23a, 400 V
- 40 A
- Rated operation current Ie at AC-23a, 690 V
- 23.5 A
- Rated short-time withstand current lcw
- 2.52 kA
- Rated insulation voltage Ui
- 690 V
- Rated impulse withstand voltage Uimp
- 6 kV
Construction
- Material housing
- Plastic
- Colour control element
- Red
- Degree of protection (IP), front side
- IP65
- Degree of protection (NEMA)
- 4X
- Version as reversing switch
- No
- Number of switches
- 1
- Interlockable
- No
Mechanical
- Padlock locking
- Yes
Dimensions
- Height
- 304 mm
- Width
- 214 mm
- Depth
- 136 mm
- Weight
- 1.54 kg
- Connectable conductor cross section
- 2.5-16 mm²
