Product image is indicative only and provided as a guide.
Socomec

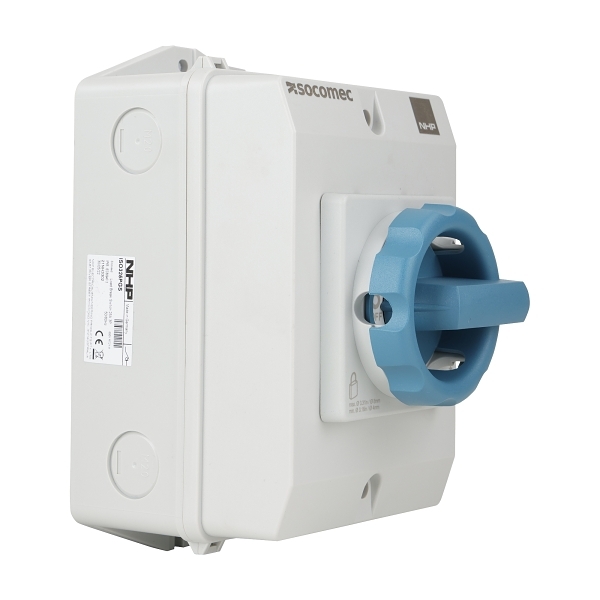

Socomec ISO Enclosed Isolator, IP 65 Plastic Grey, Handle - Blue, 4P 25A
- Item No.:
- ISO425PGS
- Product Range:
- ISO
Download product datasheet
Popular Accessories
Electrical
- Rated uninterrupted current Iu
- 25 A
- Number of poles
- 4
- Frequency
- 50/60 Hz
- Rated operation current Ie at AC-23a, 690 V
- 12 A
- Rated short-time withstand current lcw
- 0.68 kA
- Rated insulation voltage Ui
- 690 V
- Rated impulse withstand voltage Uimp
- 6 kV
- Type of electrical connection of main circuit
- Screw connection
- Rated operating voltage
- 690 V
Construction
- Material housing
- Plastic
- Colour control element
- Other
- Degree of protection (IP), front side
- IP65
- Degree of protection (NEMA)
- 4X
- Version as reversing switch
- No
- Number of switches
- 1
- Interlockable
- No
Mechanical
- Padlock locking
- Yes
Dimensions
- Height
- 140 mm
- Width
- 100 mm
- Depth
- 81 mm
- Weight
- 0.42 kg
- Connectable conductor cross section
- 2.5-10 mm²
