Socomec

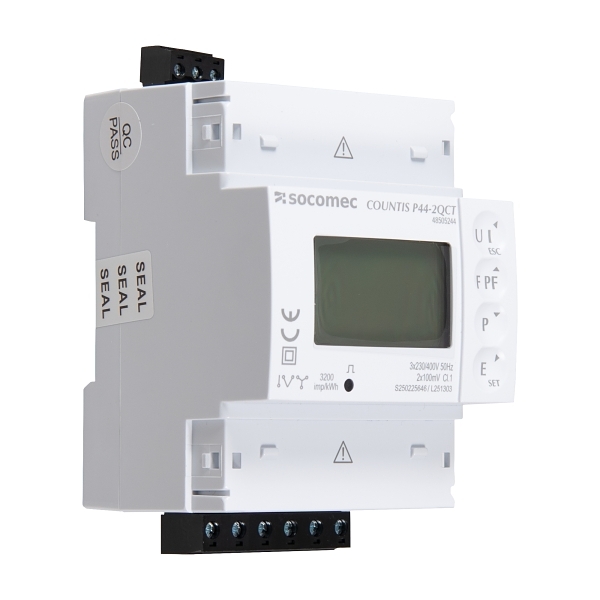

Socomec Countis P44-QCT 2 x 3Ph Quick Connect Multifunction Meter RS485
- Item No.:
- 48505244
- Product Range:
- Countis P QCT
Download product datasheet
Popular Accessories
Electrical
- Nominal voltage (Un) L-L
- 320-480 V
- Nominal voltage (Un) N-L
- 184-276 V
- Frequency
- 50-60 Hz
- Supply voltage AC 50 Hz
- 100-277 V
- Power consumption
- 1 W
- Max. power dissipation
- 3 W
- Self-powered
- No
- Pole type
- Three conductor/four conductor
- Accuracy class reactive energy according to IEC 62053-21
- 1
Construction
- Display
- LCD
- Terminal type
- Removable terminal block
- Mounting method
- DRA (DIN-rail adapter)
- With lock code
- Yes
- Degree of protection (IP), front side
- IP51
Communication
- Configuration method
- Keypad
- Supporting protocol for BACnet
- No
- Supporting protocol for Modbus
- Yes
Dimensions
- Height
- 122.5 mm
- Width
- 71.7 mm
- Depth
- 66 mm
- Width in number of modular spacings
- 4
Environment
- Operating temperature
- -40...70 °C
- Storage temperature
- -40...75 °C
- Humidity type
- Non-condensing
- Pollution degree
- 2
