Socomec

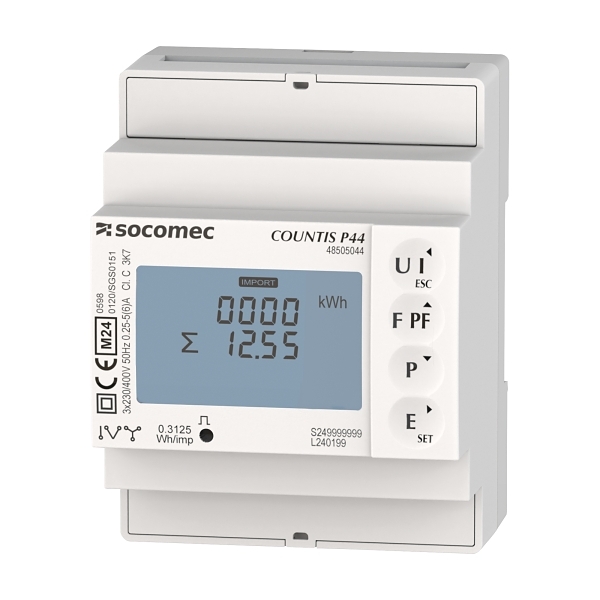

Socomec Countis P44 Three Phase CT Connect Energy Meter 5A CT RS485
- Item No.:
- 48505044
- Product Range:
- Countis P
Download product datasheet
Electrical
- Pole type
- Three conductor/four conductor
- Nominal current (In)
- 5 A
- Max. current (Imax)
- 6 A
- Nominal voltage (Un) N-L
- 230-230 V
- Nominal voltage (Un) L-L
- 400-400 V
- Frequency
- 50-60 Hz
- Supply voltage
- 100-277 V
- Type of electric connection
- Screw connection
- Accuracy class
- C
Construction
- Model
- Measurement transformer
- Type of meter
- Electronic
- Suitable for
- Purchase/supply
- Type of indication
- Digital
- Mounting method
- DRA (DIN-rail adapter)
- Degree of protection (IP), front side
- IP51
- EEC40 signature
- No
- IP rating
- IP20
Communication
- Type of interface
- Modbus
- Pulse output
- Optic
- Pulse type
- S0
- With lock code
- Yes
Certificates/Approvals
- Approval
- Measuring Instruments Directive
Dimensions
- Width
- 72 mm
- Depth
- 65 mm
- Height
- 94.5 mm
- Width in number of modular spacings
- 4
Environment
- Operating temperature
- -40...70 °C
Mechanical
- Escapement mechanism
- No
