MOD6+ Lightning Loadcentre

Built on the MOD6+ system electricians trust

The MOD6+ family just got bigger

The new MOD6+ Lightning Loadcentre has been redesigned to match the standard of the wider MOD6+ range.

Built with installer-led improvements, seamless MOD6+ compatibility and practical features that simplify installation, it's designed to work with the circuit protection electricians already know and trust.

Faster installation

Built to save time on site

Flexible by design

Adapts to different installation requirements

MOD6+ compatible

Part of a complete MOD6+ solution

Versatile application

Suitable for residential & commercial projects

Built to last

Designed for reliability and longevity

Developed by NHP

Purpose-built for New Zealand installations

Range features
Easy installation
Wiring
Compatibility chart
Contact us

Shop the range

Find the right product for your project

Explore now

Range overview

The MOD6+ Lightning Loadcentre meets Australian and New Zealand standards while combining modern switchboard design with installer-focused functionality.

Available in surface and flush mount configurations, the range is designed to support residential, multi-residential and light commercial installations while delivering seamless compatibility with MOD6+ circuit protection.

Key features

Compliant with AS/NZS 61439-3 and AS/NZS 5112
IP40 enclosure rating
Rated to 80A
Includes 18mm busbar comb
Available in surface and flush mount configurations
Double-door design

Slimline, paintable, fingerprint-resistant finish
Surface mount options from 8 to 36 ways
Flush mount options from 12 to 36 ways
UV-stabilised construction with white or transparent door options
Compatible with MOD6+ and MD6AB 9mm busbar systems

Flush design

Plaster mount or/and stud mount

Additional work space

Generous wiring space above and behind DIN rail

Marked cut-outs

Cable entry drill guide for faster marking

Installation flexibility

Quick-fit plaster mounting brackets that suit multiple plaster thicknesses

UV stabilised material

White and transparent door option

Clean and modern

Neutral white finish to blend into the background

Fast alignment

Captive escutcheon screws for easier handling during installation

Cable entry

Removable gland plate for easy mounting/wiring

Easy installation

View our step-by-step install video

Watch now

Wiring choice

The MOD6+ system gives installers a choice.

Every circuit can be protected using one of two RCBO styles, allowing electricians to wire the way they prefer without changing the board.

Combined with the full MOD6+ range of MCBs, RCDs and RCBOs, it delivers one consistent system with greater installation flexibility.

MD6RD - The compact double-screw RCBO pairs with the 9mm compact-pitch MD6AB busbar comb for a slimmer, link-free connection.

MD6RS - The neutral pigtail RCBO pairs with the 18mm standard-pitch busbar comb which is included with every loadcentre.

Compatibility chart

MOD6+ Lightning Loadcentres are designed to integrate seamlessly with MOD6+ busbar systems and MD6RD RCBOs.

Use the chart below to identify the correct single-phase or three-phase busbar comb for each loadcentre configuration, including options with or without a main incomer.

MOD6+ Lightning Loadcentre						MOD6+ Busbar Comb
Poles	No. of Rows	Flush Transparent	Flush White Surface	Surface Transparent	Surface White	Metal Backplate (Flush)	Single Phase With Main Incomer	Single Phase Without Main Incomer	Three Phase Main Incomer	Three Phase

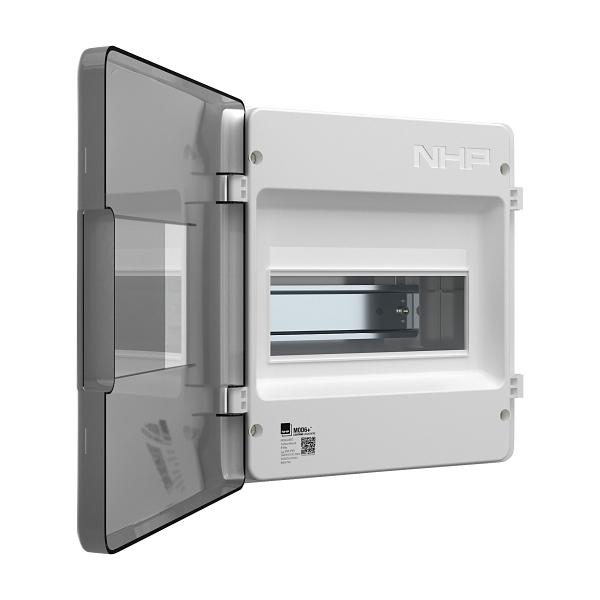

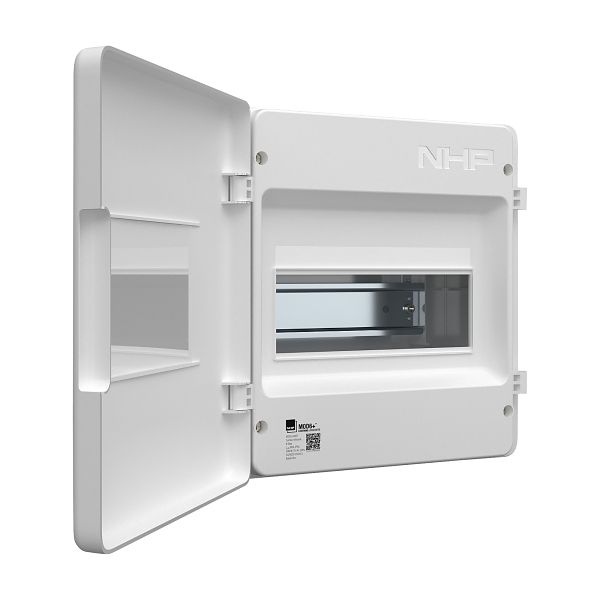

8	1	—	—	MD6LL08ST	MD6LL08SW	—	—	—	—	—

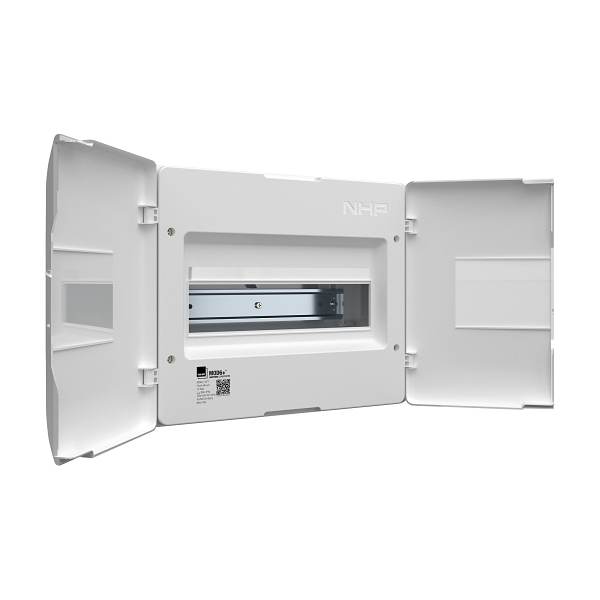

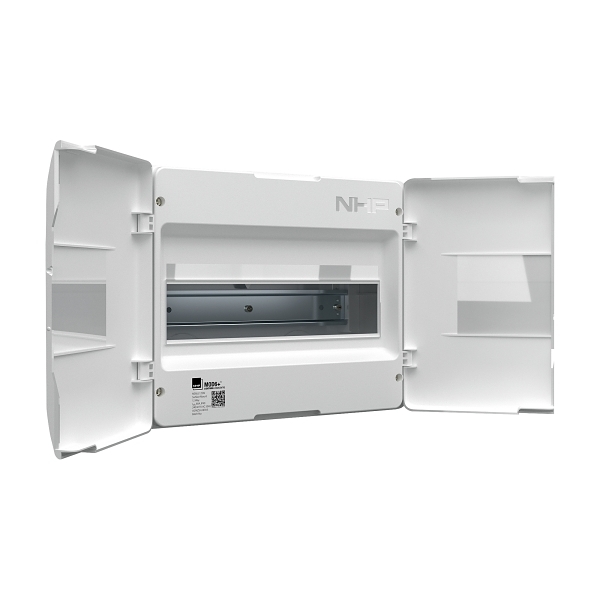

12	1	MD6LL12FT	MD6LL12FW	MD6LL12ST	MD6LL12SW	MD6LLFP12	MD6AB1219M	MD6AB1219	MD6AB1239M	MD6AB1239

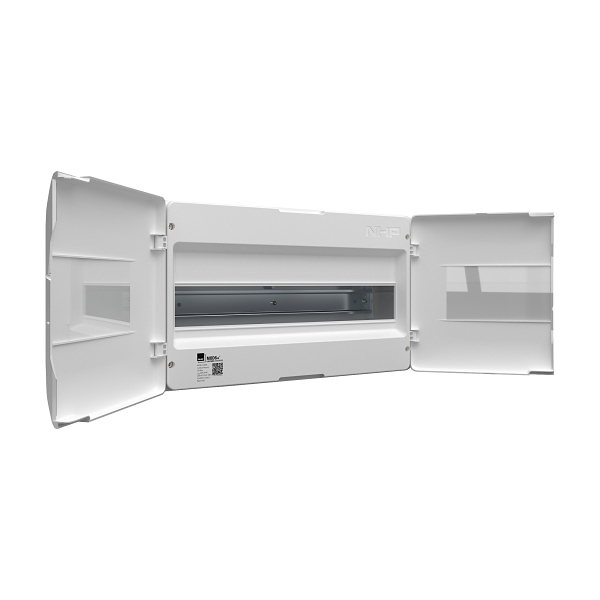

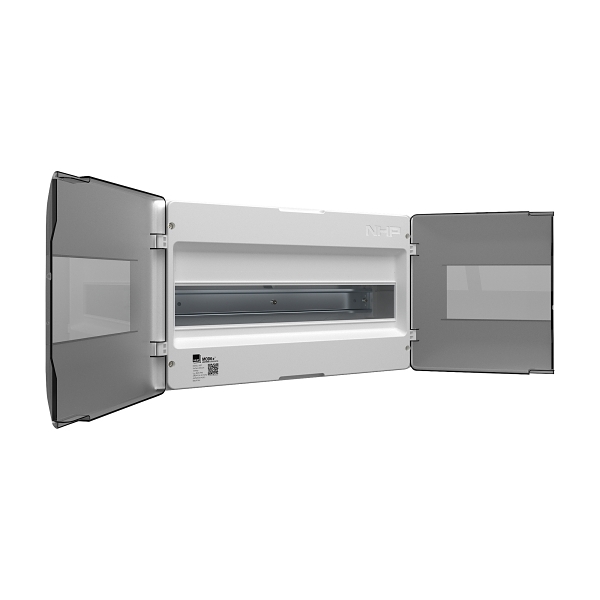

18	1	MD6LL18FT	MD6LL18FW	MD6LL18ST	MD6LL18SW	MD6LLFP18	MD6AB1819M	MD6AB1819	MD6AB1839M	MD6AB1839

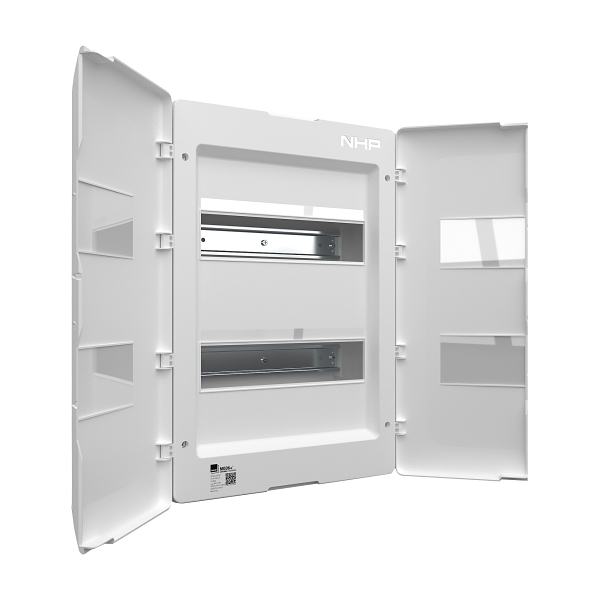

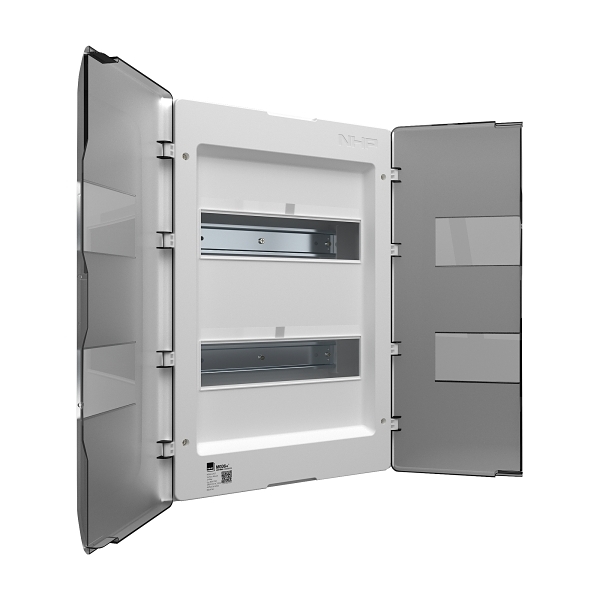

24	2	MD6LL24FT	MD6LL24FW	MD6LL24ST	MD6LL24SW	MD6LLFP24	MD6AB1219M	MD6AB1219	MD6AB1239M	MD6AB1239
36	2	MD6LL36FT	MD6LL36FW	MD6LL36ST	MD6LL36SW	MD6LLFP36	MD6AB1819M	MD6AB1819	MD6AB1839M	MD6AB1839
