NHP MOD6+

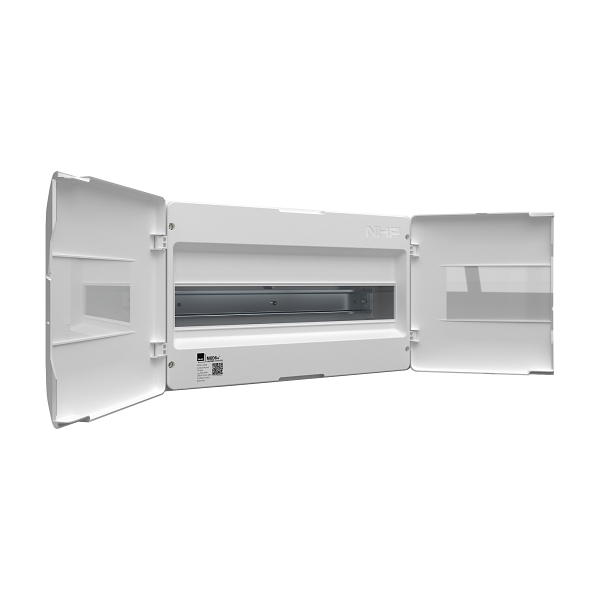

NHP MOD6+ Loadcentre Lightning 18-way Surface Door White
Item No. MD6LL18SW
Product Range: MOD6+ Loadcentres
Component Type (ETIM Class)
Small distribution board
Electrical
Rated current In80 A
Number of outgoing ways18
Number of poles, 18mm pitch18
Max. rated operation voltage Ue AC415 V
Rated insulation voltage Ui500 V
Neutral terminal blockYes
Earthing terminal blockYes
Construction
DIN-railYes
Number of rows1
Material housingPlastic
ColourWhite
RAL-number9003
IP ratingIP40

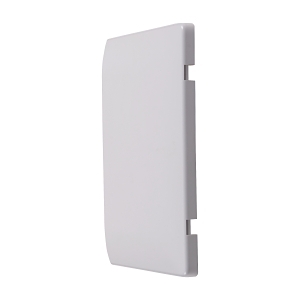

Type of coverDoor
Transparent cover/doorNo
With lockNo
Mechanical
With mounting plateNo
Dimensions
Height22.5 mm
Width38.8 mm
Depth10.5 mm
