NHP MOD6+

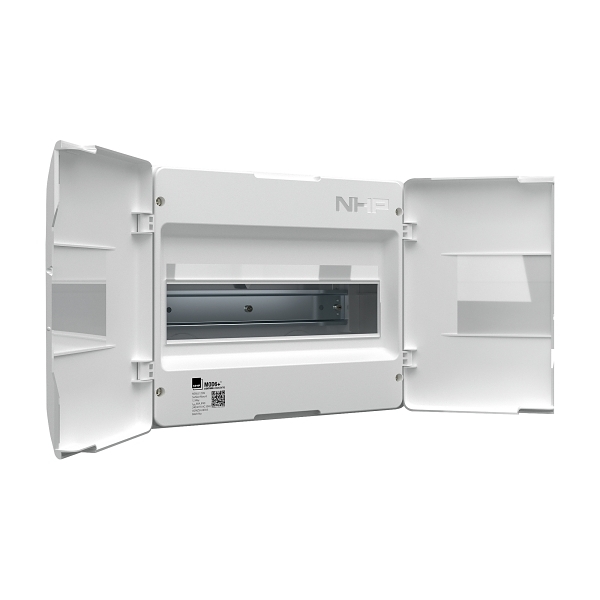

NHP MOD6+ Loadcentre Lightning 12-way Surface Door White
- Item No.:
- MD6LL12SW
- Product Range:
- MOD6+ Loadcentres
Download product datasheet

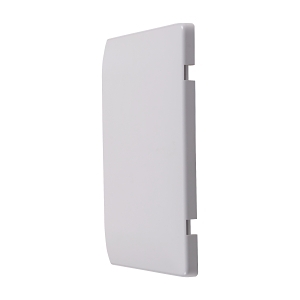

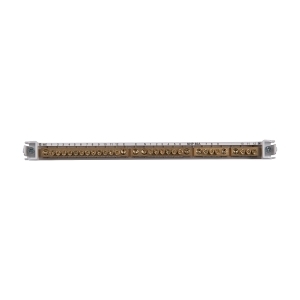

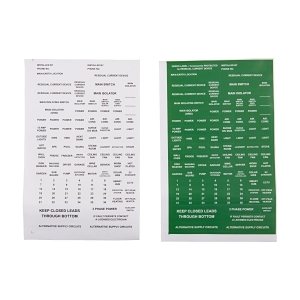

Popular Accessories
Electrical
- Rated current In
- 80 A
- Number of outgoing ways
- 12
- Number of poles, 18mm pitch
- 12
- Max. rated operation voltage Ue AC
- 415 V
- Rated insulation voltage Ui
- 500 V
- Neutral terminal block
- Yes
- Earthing terminal block
- Yes
Dimensions
- Mains conductor CSA (stranded)
- 4-25 mm²
- Mains conductor CSA (flexible with ferrules)
- 4-16 mm²
- Outgoing conductors CSA (stranded)
- 1-10 mm²
- Outgoing conductors CSA (flexible with ferrules)
- 1-6 mm²
- Height
- 220 mm
- Width
- 280 mm
- Depth
- 100.5 mm
Construction
- DIN-rail
- Yes
- Number of rows
- 1
- Material housing
- Plastic
- Colour
- White
- RAL-number
- 9003
- IP rating
- IP40
- Type of cover
- Door
- Transparent cover/door
- No
- With lock
- No
Mechanical
- With mounting plate
- No
Certificates/Approvals
- Compliant to AS/NZS 61439.3
- Yes
