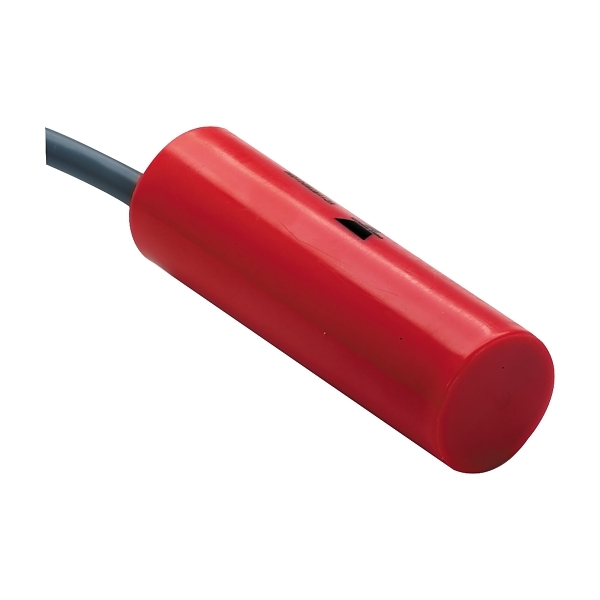

Product image is indicative only and provided as a guide.
Carlo Gavazzi
Carlo Gavazzi Capacitive Proximity Plastic Smooth M32 24V DC CO Sensing Range 4 to 12mm 2m
- Item No.:
- VC12RN924
- Product Range:
- Capacitive Prox
Download product datasheet
Construction
- Construction type housing
- Cylinder plain
- Material housing
- Plastic
- Suitable for safety functions
- No
- Coating housing
- Other
- Cascadable
- No
- Performance level according to EN ISO 13849-1
- None
- Compression-resistant
- No
Dimensions
- Width sensor
- 0 mm
- Height of sensor
- 0 mm
- Length of sensor
- 101 mm
- Diameter sensor
- 32 mm
Electrical
- Setting procedure
- Manual adjustment
- Switching distance
- 12 mm
- Voltage type
- AC/DC
- Rated control supply voltage Us at AC 50HZ
- 20.4-26.4 V
- Rated control supply voltage Us at AC 60HZ
- 26.4-20.4 V
- Rated control supply voltage Us at DC
- 20.4-26.4 V
- Type of switch function
- Change-over contact
- Type of switching output
- Relay contact
- Switching frequency
- 5 Hz
Environment
- Rated temperature
- -20...70 °C
- Storage temperature
- -40...85 °C
Mechanical
- Mechanical mounting condition for sensor
- Not flat
- With monitoring function downstream switching devices
- No
- With status indication
- Yes
Communication
- Type of interface
- None
- Type of interface for safety communication
- None
Certificates/Approvals
- SIL according to IEC 61508
- None
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
