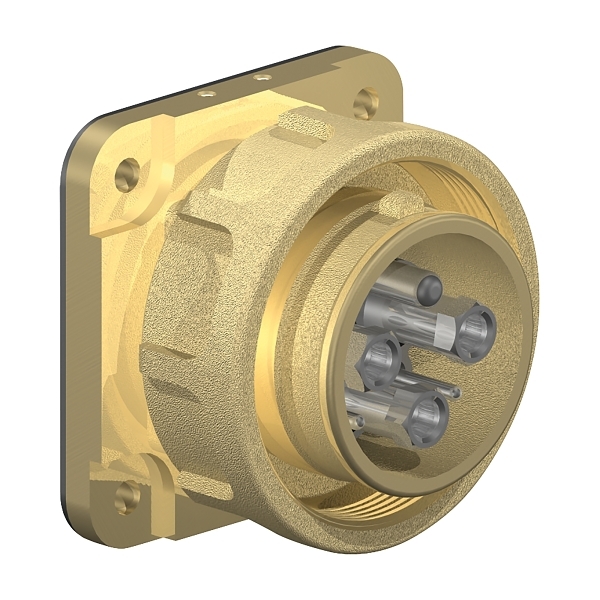

PROCONECT 3PV5 Appliance Inlet, 3P+N+E+2p, 320A, suits 120mm2 cable, w/ Crimp Terminals
Item No. V5AR412
Product Range: 3PX/3PV
Component Type (ETIM Class)
Round socket/plug for high currents
Electrical
Amperage320 A
Voltage1-3300 V
Contact configuration3P+N+E+2P
Construction
Construction typeInlet
Material insulation bodyOther
IP ratingIP67
Dimensions
Width158 mm
Length158 mm
Height109 mm
Weight3 kg
Environment
Operating temperature-30-60 °C
