PROCONECT

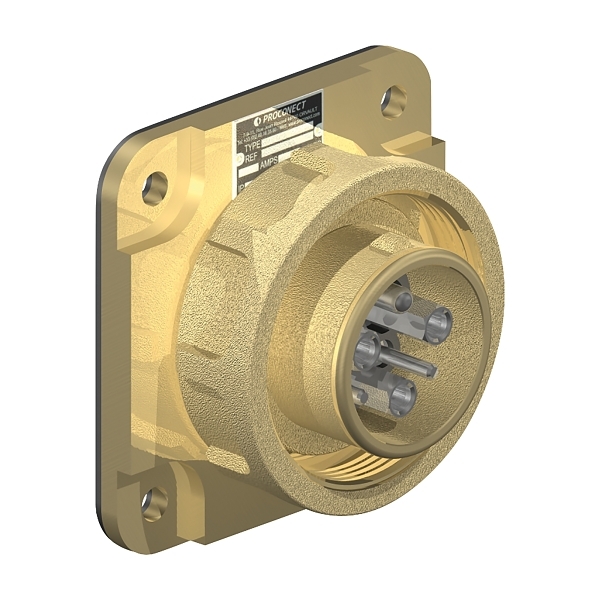

PROCONECT 3PV4 Appliance Inlet, 3P+N+E+2p, 250A, suits 50-70mm2 cable, w/ Screw Terminals
Item No. V4AR450V
Product Range: 3PX/3PV
Component Type (ETIM Class)
Round socket/plug for high currents
Electrical
Amperage250 A
Voltage1-3300 V
Contact configuration3P+N+E+2P
Construction
Construction typeInlet
Material insulation bodyOther
Contact materialOther
Material screwStainless steel
IP ratingIP67
Dimensions
Width116 mm
Length116 mm
Height80 mm
Weight1.8 kg
Environment
Operating temperature-30-60 °C
