IME

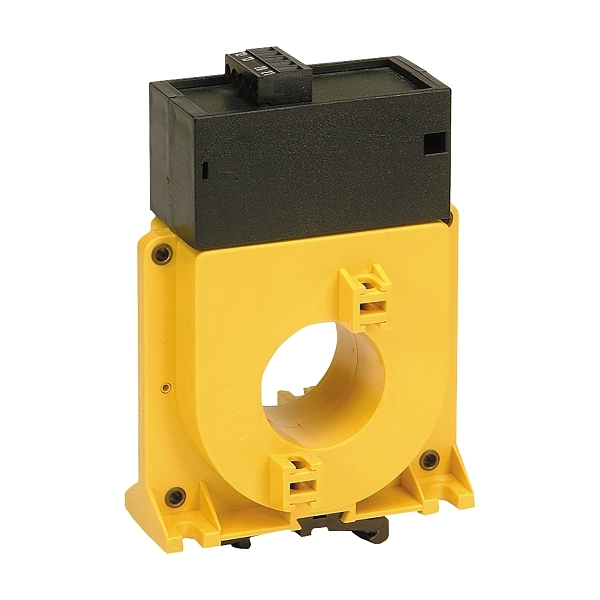

IME TT35 Combined CT and Transducer 4 Wire 25 to 225A In 4 to 20mA Out 110V AC Auxiliary
- Item No.:
- TT35A110VAC
- Product Range:
- Combined CT and Transducer
Download product datasheet
Electrical
- Primary rated current
- 225 A
- Secondary current on CT
- 0.02 A
- Rated operating frequency
- 43-63 Hz
- Accuracy class
- 1
- Power loss
- 2.5 W
- Calibrated
- Yes
Environment
- Storage temperature
- -25...70 °C
Construction
- Material housing
- Plastic
- Model
- Single-phase current converter
- With shock protection
- Yes
- Number of primary inputs
- 1
Dimensions
- Opening diameter
- 35 mm
