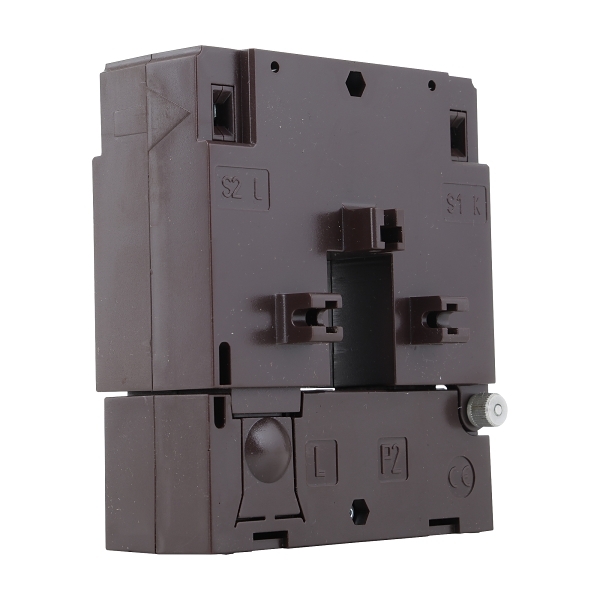

Product image is indicative only and provided as a guide.
IME
IME TRA230 Split Core Current Transformer 150A/1A 30 x 20mm 2.5VA Class 3, 1.5VA Class 1
- Item No.:
- TRA2301501A
- Product Range:
- Split Core CT
Download product datasheet
Construction
- Current transformer type
- Split core
- Model
- Attachable current transformer
- With shock protection
- Yes
- Snap mounting
- Yes
- Secondary connection
- Screw connection
- Number of primary inputs
- 1
Electrical
- Primary rated current
- 150 A
- Secondary current on CT
- 1 A
- Rated operating frequency
- 47-63 Hz
- Max. operating voltage (Umax)
- 0.72 V
- Rated short time thermal current Ith (x primary current)
- 9 kA
- Rated continuous thermal current Icth (x primary current)
- 9 kA
- Accuracy class
- 1
- Insulation class (IEC 61869-1, 61869-2)
- B
- Security factor
- 15
Environment
- Storage temperature
- -40...85 °C
