IME

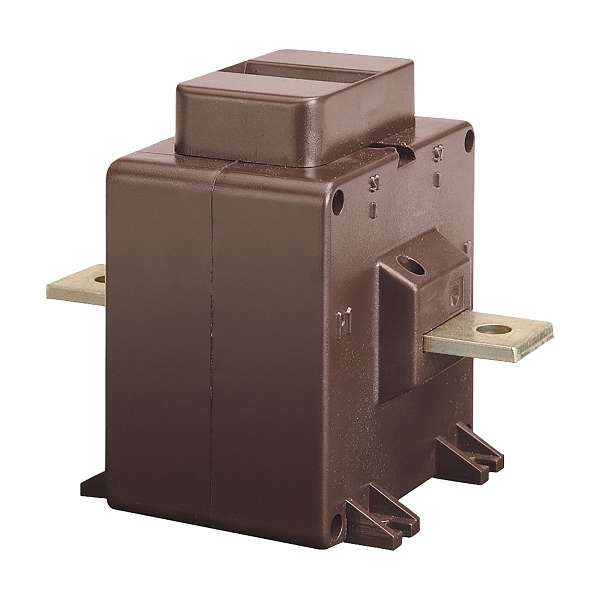

IME TAQ Primary Wound Current Transformer 75A/5A 25 x 4mm 15VA Class 1, 10VA Class 0.5
Item No. TAQ10755
Product Range: Solid Core CT
Component Type (ETIM Class)
Current transformer
Electrical
Primary rated current75 A
Secondary rated current5 A
Rated operating frequency47-63 Hz
Max. operating voltage (Umax)0.72 V
Rated short time thermal current Ith (x primary current)2.25 kA
Rated continuous thermal current Icth (x primary current)2.25 kA
Accuracy class0.5
Insulation class (IEC 61869-1, 61869-2)B
Security factor5
Construction
Material housingPolycarbonate (PC)
ModelAttachable current transformer
With shock protectionYes
Snap mountingYes
Secondary connectionScrew connection
Number of primary inputs2
Environment
Storage temperature-40-85 °C
