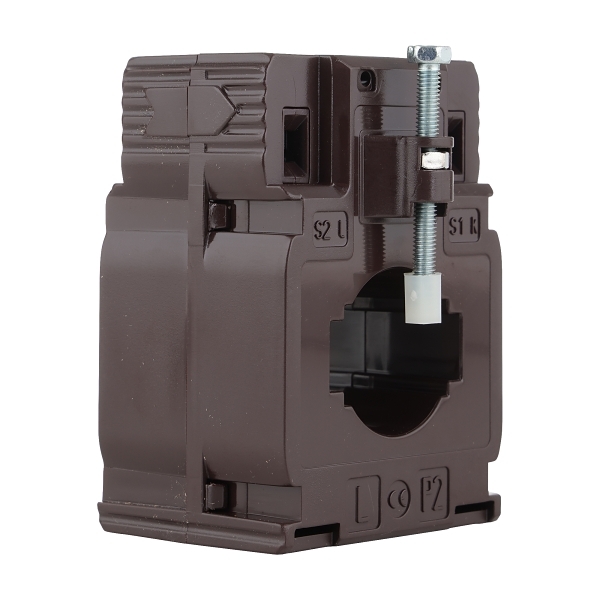

IME TA327 Solid Core Current Transformer 250A/1A 27mm 8VA Class 1, 6VA Class 0.5
Item No. TA3272501A
Product Range: Solid Core CT
Component Type (ETIM Class)
Current transformer
Electrical
Primary rated current250 A
Secondary rated current1 A
Rated operating frequency47-63 Hz
Max. operating voltage (Umax)0.72 V
Rated short time thermal current Ith (x primary current)15 kA
Rated continuous thermal current Icth (x primary current)15 kA
Accuracy class0.5
Insulation class (IEC 61869-1, 61869-2)B
Security factor5
Construction
Current transformer typeSolid core
Material housingPolycarbonate (PC)
ModelAttachable current transformer
With shock protectionYes
Snap mountingYes
Secondary connectionScrew connection
Number of primary inputs1
Dimensions
Opening diameter27 mm
Environment
Storage temperature-40-85 °C
