Product image is indicative only and provided as a guide.
Socomec

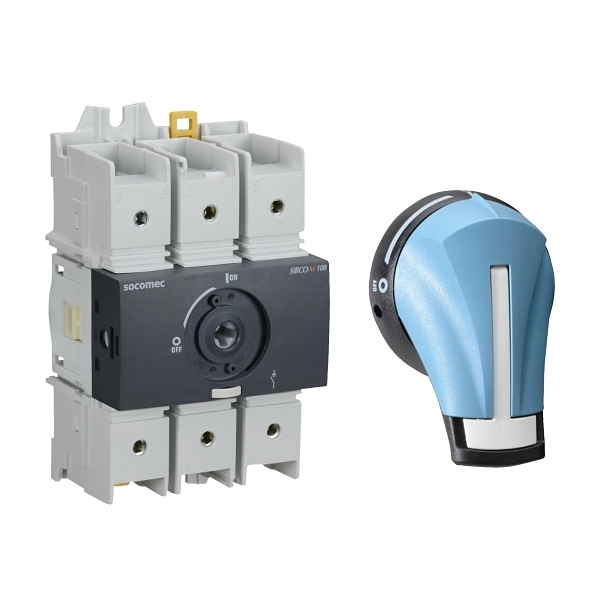

Socomec SLBM Load Break Switch kit - Heavy Duty, Base/DIN mount, w/ External Handle S01, 3P 80A
- Item No.:
- SLBM803PS
- Product Range:
- SLBM
Download product datasheet
Electrical
- Rated permanent current at AC-21, 400 V
- 80 A
- Rated uninterrupted current Iu
- 80 A
- Number of poles
- 3
- Rated operation power at AC-23, 400 V
- 80 kW
- Rated operation current Ie at AC-23a, 400 V
- 80 A
- Rated operation current Ie at AC-23a, 500 V
- 63 A
- Rated operation current Ie at AC-23a, 690 V
- 40 A
- Rated operation current Ie at DC-23a, 500 V
- 63 A
- Rated short-time withstand current lcw
- 3 kA
Mechanical
- Padlock locking
- Yes
Dimensions
- Height
- 85 mm
- Width
- 52.5 mm
- Depth
- 75 mm
- Weight
- 0.26 kg
- Conductor cross section solid (solid, stranded)
- 2.5-35 mm²
- Connectable conductor cross section
- 2.5-35 mm²
Construction
- Degree of protection (IP), front side
- IP65
- Version as main switch
- Yes
- Version as reversing switch
- No
- Number of switches
- 1
- Suitable for front mounting 4-hole
- No
- Suitable for front mounting centre
- No
- Suitable for distribution board installation
- Yes
- Suitable for intermediate mounting
- No
- Interlockable
- Yes
