Socomec

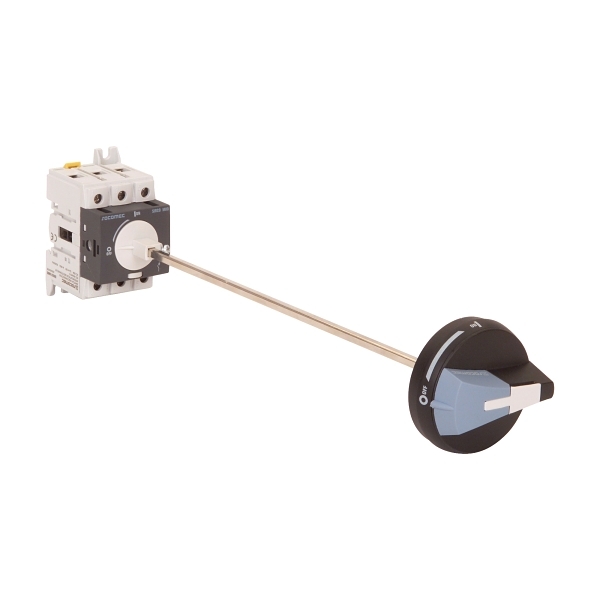

Socomec SLBM Load Break Switch kit, Base/DIN rail mount, w/ External Handle S00, 3P 40A

Item No. SLBM403P
Product Range: SLBM
Component Type (ETIM Class)
Switch disconnector
Electrical
Rated permanent current at AC-21, 400 V40 A
Rated permanent current Iu40 A
Number of poles3
Rated operation power at AC-23, 400 V40 kW
Rated operation current Ie at AC-23a, 400 V40 A
Rated operation current Ie at AC-23a, 500 V25 A
Rated operation current Ie at AC-23a, 690 V25 A
Rated short-time withstand current lcw2.5 kA
Rated insulation voltage Ui800 V
Construction
Degree of protection (IP), front sideIP65
Version as main switchYes
Version as reversing switchNo
Number of switches1
Suitable for floor mountingNo
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Suitable for distribution board installationYes
Suitable for intermediate mountingNo
Mechanical
Padlock lockingYes
Dimensions
Height75 mm
Width45 mm
Depth136 mm
Weight0.16 kg
Conductor cross section solid (solid, stranded)1.5-16 mm²
Connectable conductor cross section1.5-16 mm²
