Socomec

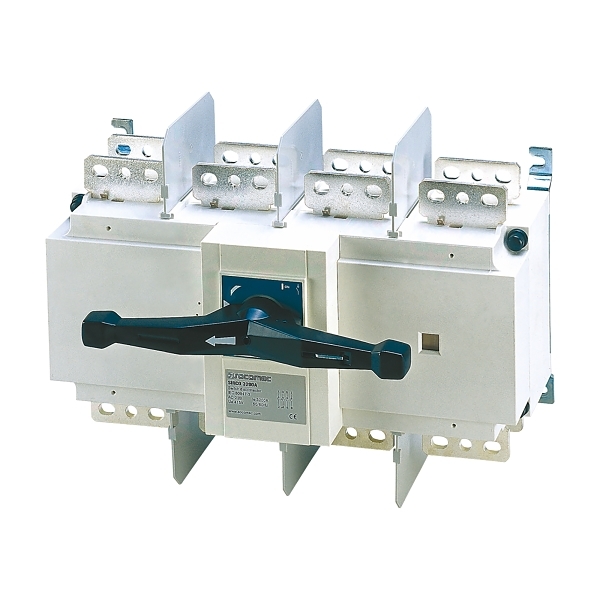

Socomec SLB Load Break Switch kit, w/ External Handle, 4P 3200A

Item No. SLB32004P
Product Range: SLB
Component Type (ETIM Class)
Switch disconnector
Electrical
Max. rated operation voltage Ue AC12000 V
Rated permanent current at AC-21, 400 V3200 A
Rated permanent current Iu3200 A
Number of poles4
Rated operation power at AC-23, 400 V710 kW
Rated operation current Ie at AC-23a, 400 V1600 A
Rated operation current Ie at AC-23a, 500 V1000 A
Rated operation current Ie at AC-23a, 690 V800 A
Rated operation current Ie at DC-23a, 220 V1250 A
Construction
Degree of protection (IP), front sideIP65
Version as main switchYes
Version as reversing switchNo
Number of switches1
Suitable for floor mountingNo
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Suitable for distribution board installationYes
Suitable for intermediate mountingNo
Mechanical
Padlock lockingYes
Dimensions
Height235 mm
Width492 mm
Depth110 mm
