Socomec

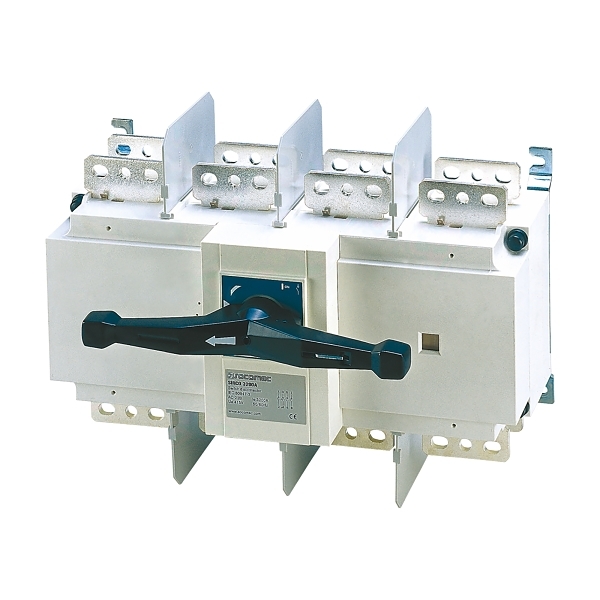

Socomec SLB Load Break Switch kit, w/ External Handle, 4P 1800A

Item No. SLB18004P
Product Range: SLB
Component Type (ETIM Class)
Switch disconnector
Electrical
Max. rated operation voltage Ue AC12000 V
Rated permanent current at AC-21, 400 V1800 A
Rated permanent current Iu1800 A
Number of poles4
Rated operation power at AC-23, 400 V710 kW
Rated operation current Ie at AC-23a, 400 V1250 A
Rated operation current Ie at AC-23a, 500 V1000 A
Rated operation current Ie at AC-23a, 690 V500 A
Rated operation current Ie at DC-23a, 220 V1250 A
Construction
Degree of protection (IP), front sideIP65
Version as main switchYes
Version as reversing switchNo
Number of switches1
Suitable for floor mountingNo
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Suitable for distribution board installationYes
Suitable for intermediate mountingNo
Mechanical
Padlock lockingYes
Dimensions
Height288 mm
Width492 mm
Depth140 mm
Conductor cross section solid (solid, stranded)185 mm²
Connectable conductor cross section185 mm²
