Socomec

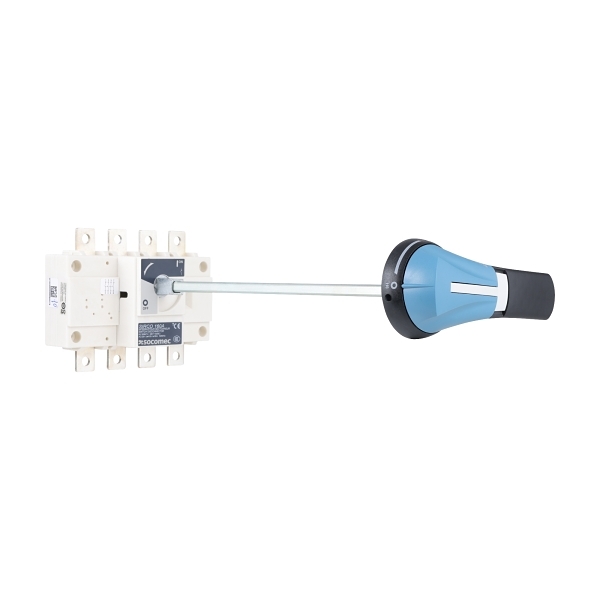

Socomec SLB Load Break Switch kit, w/ External Handle, 4P 160A

Item No. SLB1604P
Product Range: SLB
Component Type (ETIM Class)
Switch disconnector
Electrical
Max. rated operation voltage Ue AC8000 V
Rated permanent current at AC-21, 400 V160 A
Rated permanent current Iu160 A
Number of poles4
Rated operation power at AC-23, 400 V80 kW
Rated operation current Ie at AC-23a, 400 V160 A
Rated operation current Ie at AC-23a, 500 V100 A
Rated operation current Ie at AC-23a, 690 V63 A
Rated operation current Ie at DC-23a, 220 V125 A
Construction
Degree of protection (IP), front sideIP65
Version as main switchYes
Version as reversing switchNo
Number of switches1
Suitable for floor mountingNo
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Suitable for distribution board installationYes
Suitable for intermediate mountingNo
Mechanical
Padlock lockingYes
Dimensions
Height135 mm
Width150 mm
Depth65 mm
Conductor cross section solid (solid, stranded)50-95 mm²
Connectable conductor cross section50-95 mm²
