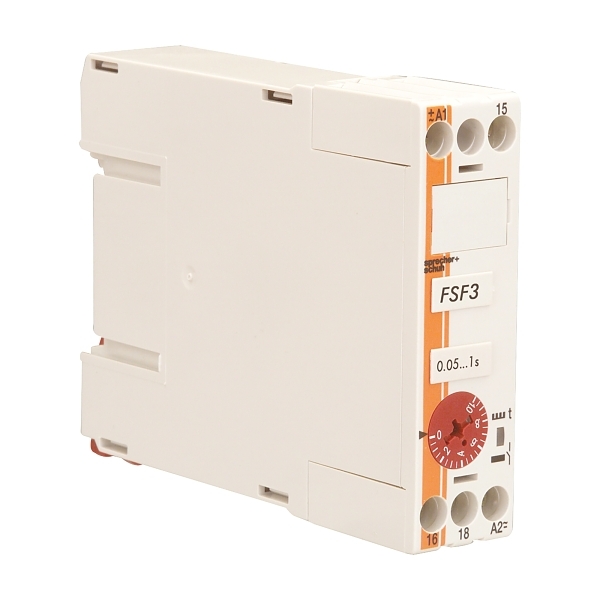

Product image is indicative only and provided as a guide.
Sprecher + Schuh
Sprecher and Schuh RZ7 Timer Relay Symmetrical Ryc with Pulse 346 to 440VAC Supply 1CO 0.5 to 10mins
- Item No.:
- RZ7FSF3GA40
- Product Range:
- RZ7
Download product datasheet
Electrical
- Voltage type for actuating
- AC
- Rated control supply voltage Us at AC 60HZ
- 346-440 V
- Rated control supply voltage Us at AC 50HZ
- 346-440 V
- Number of outputs, delayed, change-over contact
- 1
- Rated operation current Ie at DC-13, 24 V
- 1 A
- Rated operation current Ie at AC-15, 250 V
- 3 A
- Type of electric connection
- Screw connection
- Function delay-on energization
- No
- Function delay on de-energization
- No
Mechanical
- Suitable for DIN rail (top hat rail) mounting
- Yes
- Mechanical lifetime (control contacts)
- 30000000 c (contacts)
- Max. shock acceleration
- 50 g
- Max. vibration acceleration
- 4 m/s²
- Max. vibration frequency, operational
- 100 Hz
Dimensions
- Height
- 78.8 mm
- Depth
- 109 mm
- Width
- 22.5 mm
Construction
- Degree of protection (IP), front side
- IP30
- Degree of protection (IP), rear side
- IP20
Environment
- Operating temperature
- -25...45 °C
