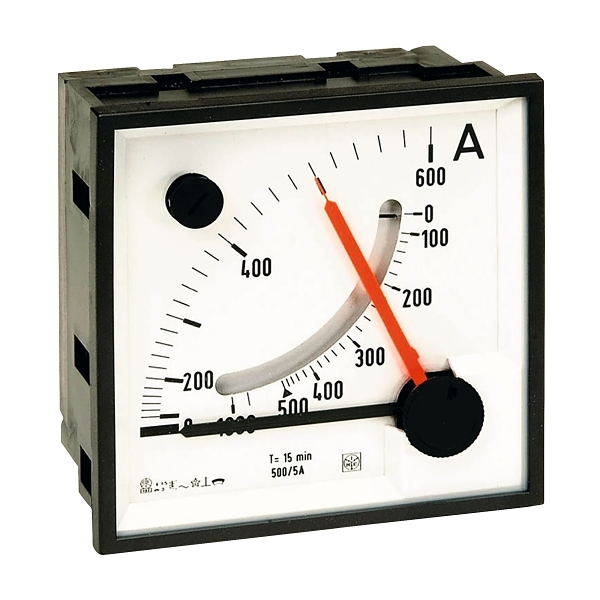

Product image is indicative only and provided as a guide.
IME
IME Analogue Comb Max Current Demand Ammeter 5A CT Connect Scale 0 to 600A Overranged Max 720A AC
- Item No.:
- RQTE72N5A600
- Product Range:
- Analogue Meters
Download product datasheet
Electrical
- Nominal voltage
- 600 V
- Rated insulation voltage Ui
- 600 V
- Type of measuring component
- Analogue
- Rated burden
- 2.5 VA
- Mains frequency
- 50 Hz
- Nominal frequency
- 45-65
- Current overload capacity, continuous value
- 0.01 kA
- Output display units
- A
- Output display range (configurable or not)
- 600 A
Construction
- Model
- Front mounting
- Housing material
- Plastic
- Measurement system
- Moving coil
- Degree of protection (IP), front side
- IP52
- Degree of protection (IP), mounted
- IP20
Mechanical
- Connection type
- Screwed terminal
- Number of meters displayed
- 2
Dimensions
- Ampmeter width
- 72 mm
- Ampmeter height
- 72 mm
- Height (cutout)
- 68 mm
- Width (cutout)
- 68 mm
- Depth
- 69 mm
- Weight
- 0.19 kg
Communication
- Overrange indication
- Yes
Environment
- Storage temperature
- -40...80 °C
- Operating temperature
- -25...50 °C
- Pollution degree
- 2
