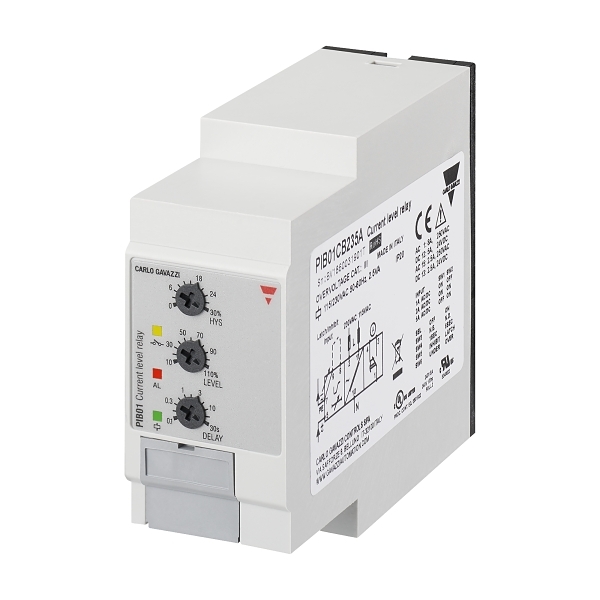

Carlo Gavazzi Monitoring Relay Over or Under Current via Int-Shunt 0.1-5A ACDC and 115 to 230VAC 1CO
- Item No.:
- PIB01CB235A
- Product Range:
- V/I/PH/PF Monitoring
Download product datasheet
Electrical
- Current measuring range
- 0.1-5 A
- External current transformer
- Yes
- Single-phase under current possible
- Yes
- Single-phase over current possible
- Yes
- Rated frequency
- 45-65 Hz
- Contains function DC-voltage under current
- Yes
- Contains function DC-voltage over current
- Yes
- Number of contacts as change-over contact
- 1
- Rated operation current Ie
- 8 A
Construction
- Material contact
- Silver tin-oxide
- Suitable for plug-in socket mounting
- Yes
- IP rating
- IP20
Dimensions
- Height
- 80 mm
- Width
- 36 mm
- Depth
- 94 mm
- Weight
- 0.15 kg
Environment
- Storage temperature
- -30...80 °C
