Product image is indicative only and provided as a guide.
CUBIC

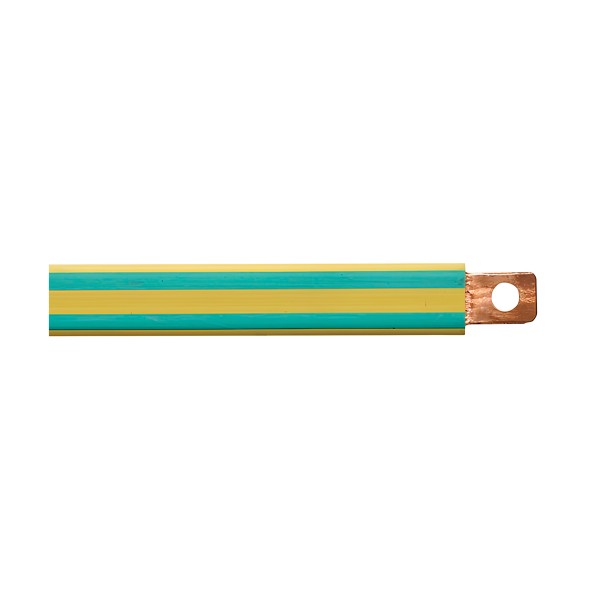

CUBIC CuFlex Flexible Copper Busbar PE 25mm2 Length 288mm Green and Yellow
- Item No.:
- PEFB25288
- Product Range:
- CuFlex
Download product datasheet
Popular Accessories
Dimensions
- Length
- 288 mm
- Width
- 20 mm
- Height
- 1.5 mm
- Wire/conductor size
- 25 mm
Construction
- Flexible
- Yes
- Colour housing
- Green/yellow
- Fire resistant properties
- According to UL94 V0
- Model
- Flat
- Surface protection
- Untreated
Electrical
- Rated current In
- 190 A
- Rated current x1 busbar to busbar deltaT 30K-65K
- 145-215 A
- Rated current x1 busbar to component deltaT 40K-55K
- 91-107 A
- Rated current x1 component to component deltaT 40K-55K
- 91-107 A
- Nominal voltage
- 1000 V
- Rated short-time withstand current lcc
- 24 A
- Rated insulation voltage Ui
- 1000 V
- Power loss
- 9.1 W
Environment
- Max. operating temperature
- 105 °C
