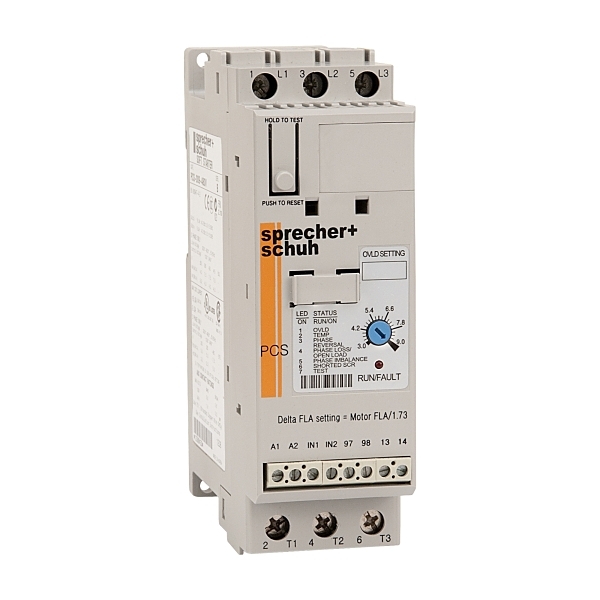

Product image is indicative only and provided as a guide.
Sprecher + Schuh
S+S PCS Soft Starter 480V 43A ND3W 100 to 240VAC Control
- Item No.:
- PCS043480V
- Product Range:
- Soft Starter
Download product datasheet
Electrical
- Rated operation current Ie at 40 °C Tu
- 43 A
- Rated power three-phase motor, inline, at 400 V
- 22 kW
- Rated power three-phase motor, inside delta, at 400 V
- 37 kW
- Rated operating voltage Ue
- 200-480 V
- Integrated motor overload protection
- Yes
- Release class
- Adjustable
- Internal bypass
- Yes
- Voltage type for actuating
- AC
- Rated control supply voltage Us at AC 50HZ
- 100-240 V
Construction
- With display
- No
- IP rating
- IP2X
Environment
- Rated surrounding temperature without derating
- 40 °C
Dimensions
- Height
- 206 mm
- Width
- 72 mm
- Depth
- 130 mm
- Weight
- 2.25 kg
