Carlo Gavazzi

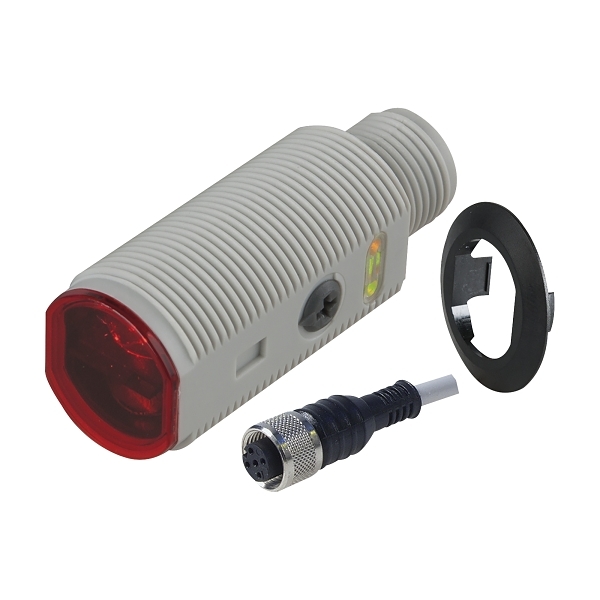

Carlo Gavazzi Photoelectric Sensor Diffuse Reflective Plastic M18 DC PNP NONC Range-1m 2m
- Item No.:
- PA18CAD10PAM1SA
- Product Range:
- Photoelectric Sensor
Download product datasheet
Photometric
- Sensing type
- Standard diffuse
- Type of light
- Other
- Wavelength of the sensor
- 625 nm
- Beam angle
- 4 °
- Max. switching distance
- 1000 mm
Construction
- Material of optical surface
- Plastic
- Material housing
- Plastic
- Construction type housing
- Cylinder, screw-thread
- IP rating
- IP67
- Material of cable sheath
- Polyvinyl chloride (PVC)
Dimensions
- Thread size
- 18 mm
Electrical
- Setting procedure
- Manual adjustment
- Voltage type
- DC
- Max. output current
- 0.1 mA
- Response time
- 1 ms
- Type of electric connection
- Connector M12
- Number of conductors
- 4
Environment
- Ambient temperature
- -20...60 °C
