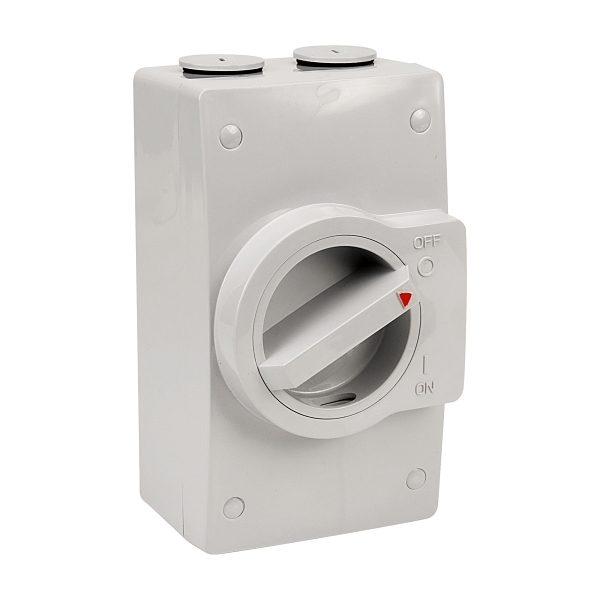

Product image is indicative only and provided as a guide.
NHP NLINE
NHP NLINE Isolating Switch, Large IP 66 Plastic, 3 Pole 40A 500V AC
- Item No.:
- NL340L
- Product Range:
- NLINE Weatherproof Isolators
Download product datasheet
Electrical
- Rated operating voltage Ue
- 500 V
- Rated uninterrupted current Iu
- 40 A
- Number of poles
- 3
- M rating
- M180
- Rated operation current Ie at AC-23a, 500 V
- 16 A
- Rated operating voltage
- 500 V
Construction
- Material housing
- Plastic
- Colour control element
- Grey
- Degree of protection (IP), front side
- IP66
- Version as reversing switch
- No
Dimensions
- Height
- 165 mm
- Width
- 95 mm
- Depth
- 91 mm
- Weight
- 0.5 kg
- Conductor cross section (solid, stranded)
- 6-16 mm²
