NHP POWERMAX

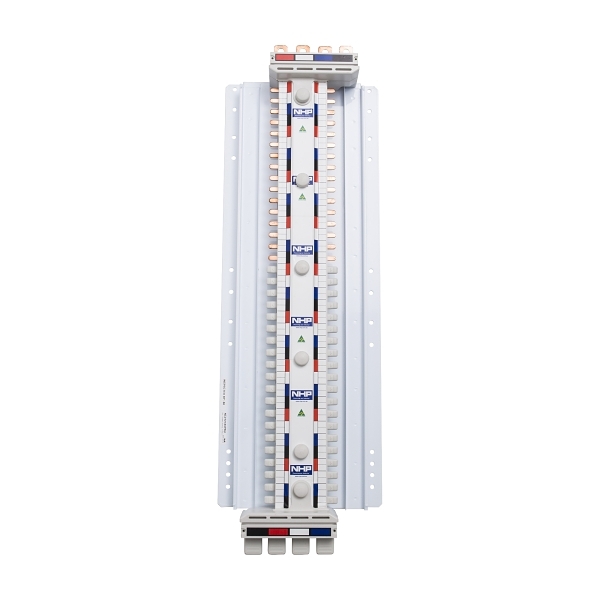

NHP POWERMAX DIN-T NC Busbar Chassis 250A 72 Way 3Pole Plus Neutral Universal RWBN
- Item No.:
- NC272183PNU
- Product Range:
- DIN-T NC BC
Download product datasheet
Popular Accessories
Electrical
- Rated current
- 250 A
- Number of poles
- 72
- Number of poles, 18mm pitch
- 72
- Number of phases input
- 3P+N
- Nominal voltage
- 415 V
- Short time withstand current Icw, 0.1 sec
- 25 kA
- Short time withstand current Icw, 0.3 sec
- 20 kA
- Short time withstand current Icw, 1 sec
- 10 kA
Construction
- Assembly arrangement
- 18mm pitch
- Material housing
- Encapsulated material
- Suitable for devices with N-conductor
- Yes
- Tee-off isolator
- No
- Capped tee-offs
- 0.5
- IP rating
- IP20
Dimensions
- Depth
- 82 mm
- Height (pan)
- 674 mm
