Product image is indicative only and provided as a guide.
NHP MOD6+

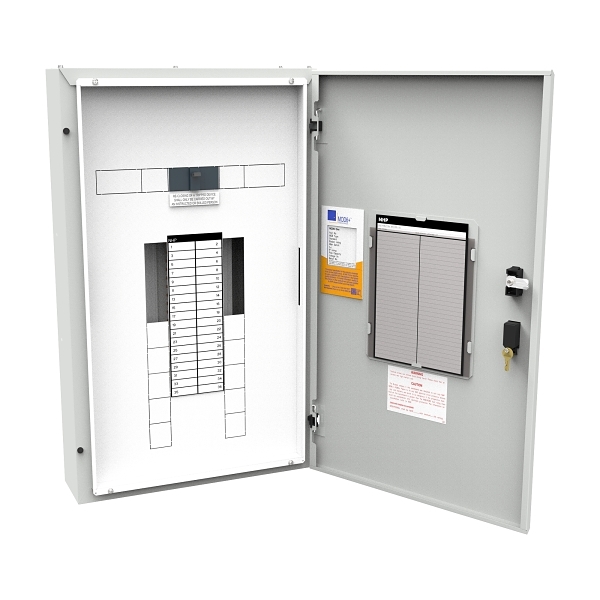

NHP MOD6+ One Panelboard DIN 24W No Main Switch Light Grey
- Item No.:
- MD6PO24LG
- Product Range:
- MOD6+ One
Download product datasheet

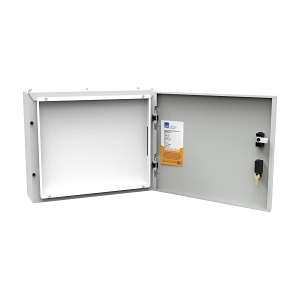

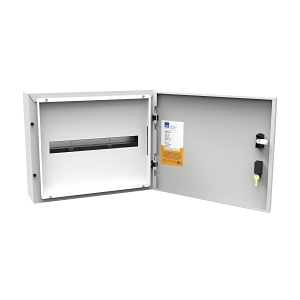

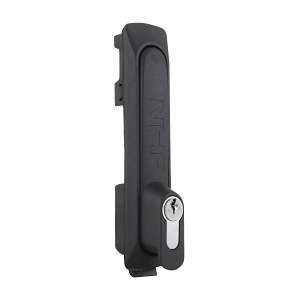

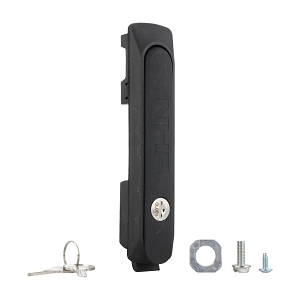

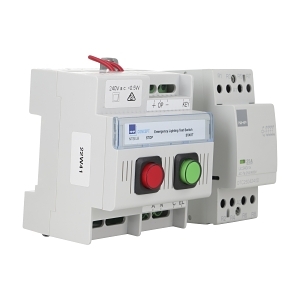

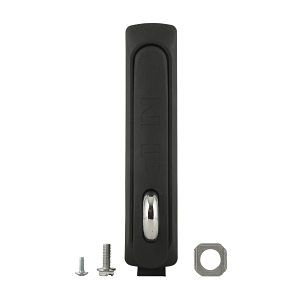

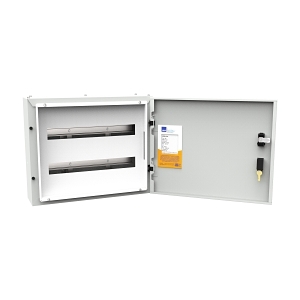

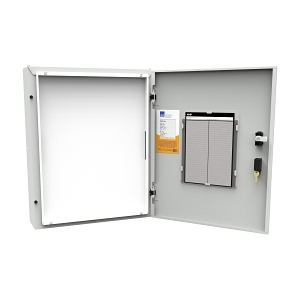

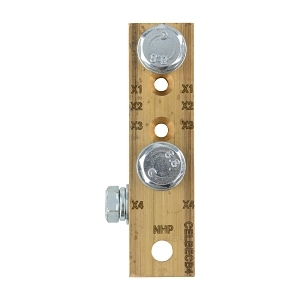

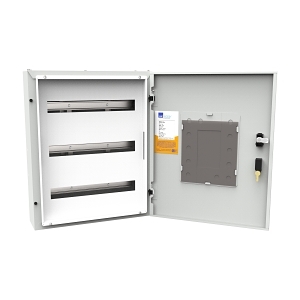

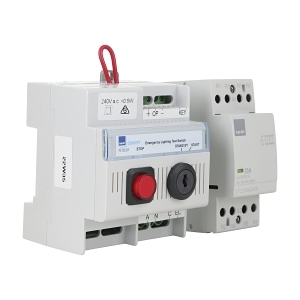

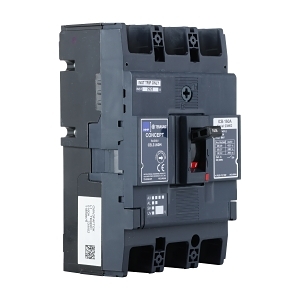

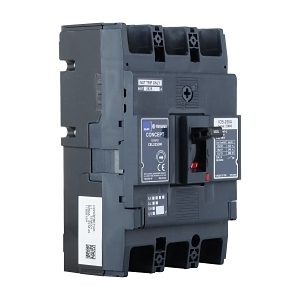

Popular Accessories
Electrical
- Rated current In
- 250 A
- Number of outgoing ways
- 24
- Number of poles, 18mm pitch
- 24
- Max. rated operation voltage Ue AC
- 415 V
- Rated impulse withstand voltage Uimp
- 6 kV
- Rated insulation voltage Ui
- 500 V
- Neutral terminal block
- Yes
- Neutral bar rated current
- 250 A
- Earthing terminal block
- Yes
Construction
- Spare DIN equipment space (poles)
- 16
- DIN-rail
- Yes
- Material housing
- Steel
- Material thickness
- 1 mm
- Colour
- Grey
- RAL-number
- 7035
- IP rating
- IP40
- Type of cover
- Door
- Material thickness cover
- 1 mm
Mechanical
- Impact strength
- IK07
Dimensions
- Height
- 648 mm
- Width
- 530 mm
- Depth
- 153 mm
