Sprecher + Schuh

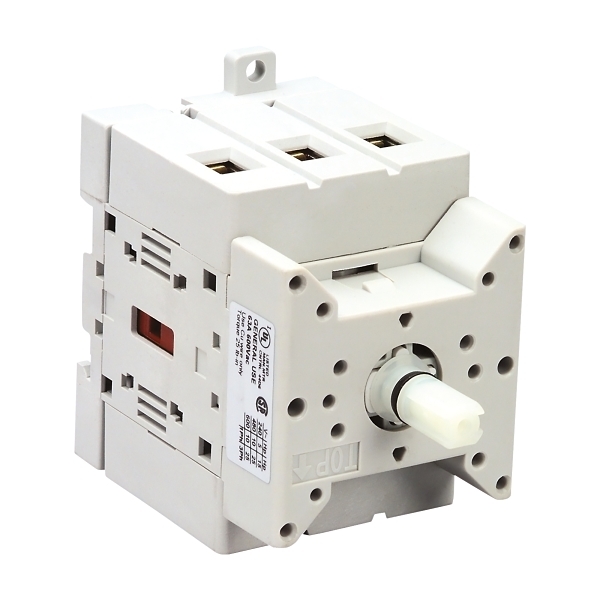

Sprecher and Schuh L7 Switch Body 3 Pole Off On Panel Mount 80A
- Item No.:
- LE7801753
- Product Range:
- L7 Loadbreak Switch
Download product datasheet

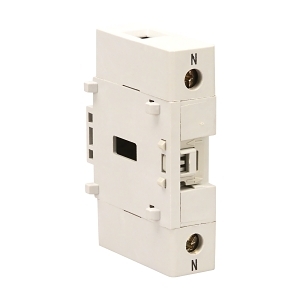

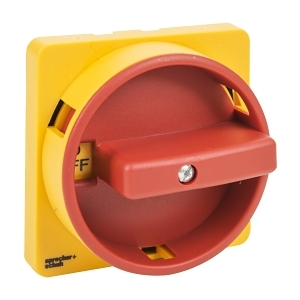

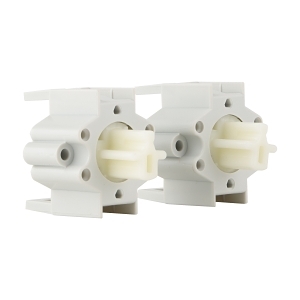

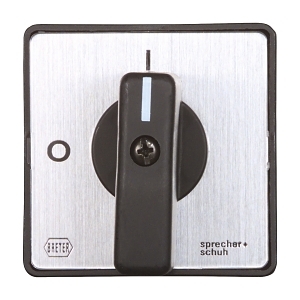

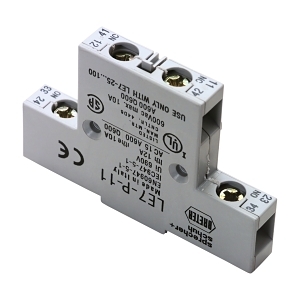

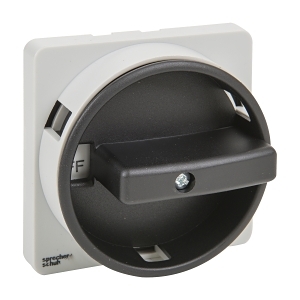

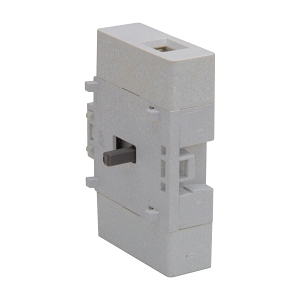

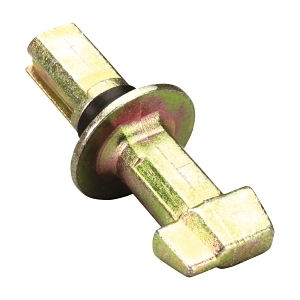

Popular Accessories
Electrical
- Number of poles
- 3
- Rated operation power at AC-3, 400 V
- 30 kW
- Rated operation current Ie at AC-21a, 690V
- 80 A
- Rated operation current Ie at AC-1, 690V
- 80 A
- Ithe, thermal current (enclosed)
- 80 A
- Ith, thermal current (open)
- 100 A
- Number of auxiliary contacts as normally closed contact
- 0
- Number of auxiliary contacts as normally open contact
- 0
Construction
- Model
- On/Off switch
- Mounting method
- Front mounting
- Material housing
- Plastic
- Wire/conductor size, rigid cable
- 4-35 mm²
- Wire/conductor size, flex cable
- 4-50 mm²
- Degree of protection (IP), front side
- IP20
- Suitable for front mounting
- Yes
- Complete device in housing
- No
Mechanical
- With zero (off) position
- Yes
- Mechanical life (service cycles)
- 200000 cycles
- Number of switch positions
- 2
Environment
- Operating temperature
- -25...60 °C
Dimensions
- Depth
- 90 mm
- Width
- 72 mm
- Height
- 90 mm
