Sprecher + Schuh

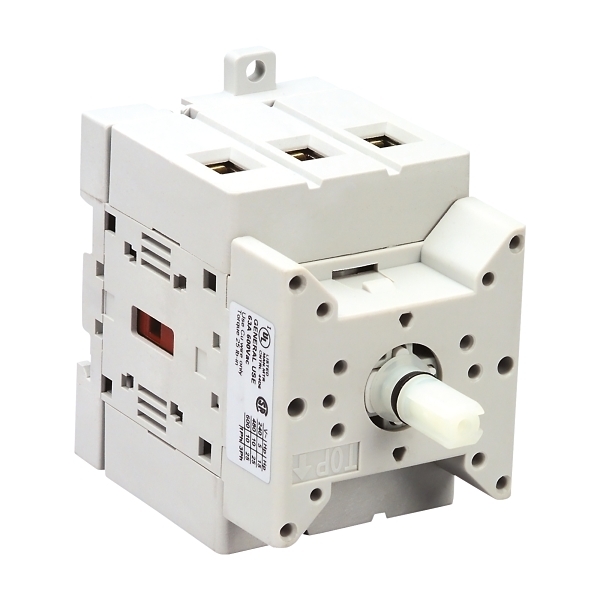

Sprecher and Schuh L7 Switch Body 3 Pole Off On Panel Mount 32A

Item No. LE7321753
Product Range: L7 Loadbreak Switch
Component Type (ETIM Class)
Off-load switch
Number of poles3
Rated operation power at AC-3, 400 V11 kW
Rated operation current Ie at AC-21a, 690V32 A
Rated operation current Ie at AC-1, 690V32 A
Ithe, thermal current (enclosed)40 A
Ith, thermal current (open)50 A
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
ModelOn/Off switch
Mounting methodFront mounting
Material housingPlastic
Wire/conductor size, rigid cable1.5-10 mm²
Wire/conductor size, flex cable1.5-16 mm²
Degree of protection (IP), front sideIP20
Suitable for front mountingYes
Complete device in housingNo
With zero (off) positionYes
Mechanical life (service cycles)200000 cycles
Number of switch positions2
Depth60 mm
Width45 mm
Height63 mm
Operating temperature-25-60 °C
