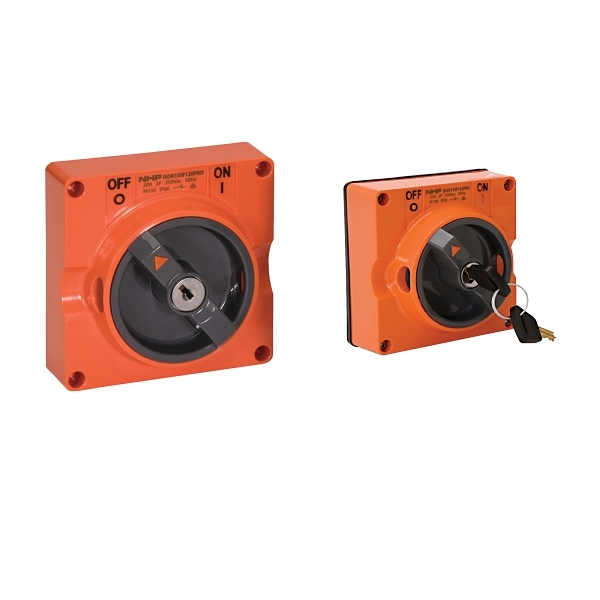

Product image is indicative only and provided as a guide.
NHP ISO
NHP ISO Surface Switch - Common Key, Lock in ON/OFF, 3 Pole 50A 500V AC, w/o Base, Resistant Orange
- Item No.:
- ISOKC2SW350PROLB
- Product Range:
- ISO
Download product datasheet
Electrical
- Rated operating voltage Ue
- 500 V
- Rated uninterrupted current Iu
- 50 A
- Number of poles
- 3
- Frequency
- 50 Hz
- Rated operation current Ie at AC-23a, 500 V
- 50 A
- Rated operating voltage
- 500 V
Construction
- Material housing
- Plastic
- Colour control element
- Grey
- Degree of protection (IP), front side
- IP66
- Degree of protection (NEMA)
- 4X
- Version as reversing switch
- No
Mechanical
- Padlock locking
- Yes
Dimensions
- Height
- 101 mm
- Width
- 101 mm
- Depth
- 54 mm
- Connectable conductor cross section
- 10-16 mm²
