CUBIC

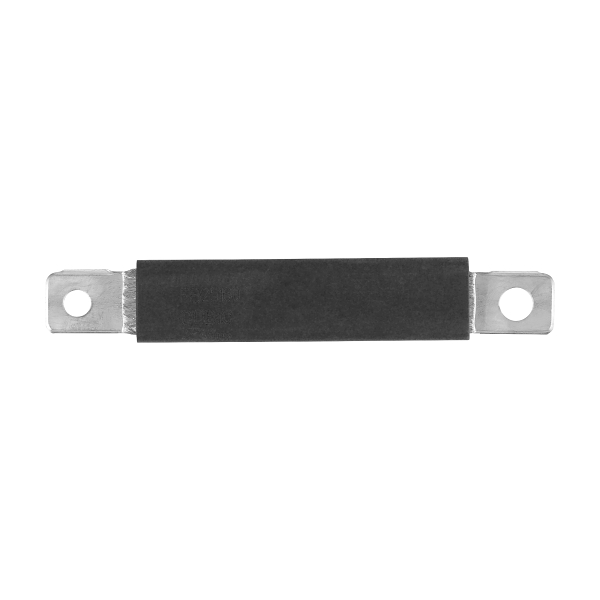

CUBIC CuFlex Flexible Copper Busbar 100mm2 Length 1120mm Black/Dark Grey
- Item No.:
- FB1001120T
- Product Range:
- CuFlex
Download product datasheet
Popular Accessories
Dimensions
- Length
- 1120 mm
- Width
- 20 mm
- Height
- 5 mm
- Wire/conductor size
- 100 mm
Construction
- Flexible
- Yes
- Colour housing
- Grey/black
- Fire resistant properties
- According to UL94 V0
- Model
- Flat
- Surface protection
- Tinned
Electrical
- Rated current In
- 420 A
- Rated current x1 busbar to busbar deltaT 30K-65K
- 335-495 A
- Rated current x2 busbar to busbar deltaT 30K-65K
- 545-800 A
- Rated current x1 busbar to component deltaT 40K-55K
- 170-200 A
- Rated current x2 busbar to component deltaT 40K-55K
- 275-325 A
- Rated current x1 component to component deltaT 40K-55K
- 170-200 A
- Rated current x2 component to component deltaT 40K-55K
- 233-273 A
- Nominal voltage
- 1000 V
- Rated short-time withstand current lcc
- 64 A
Environment
- Max. operating temperature
- 105 °C
