Carlo Gavazzi

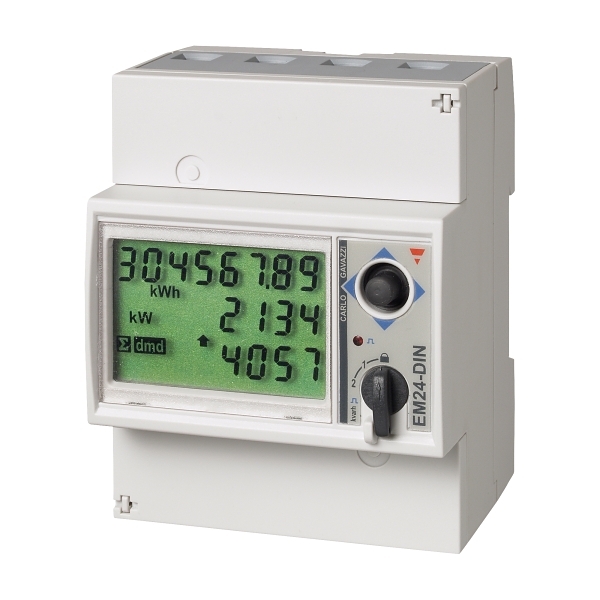

Carlo Gavazzi EM24DIN Energy Meter CT Connect with 2 Relay Output
- Item No.:
- EM24DINAV53DR2X
- Product Range:
- EM24DIN
Download product datasheet
Electrical
- Nominal current (In)
- 5 A
- Nominal voltage (Un) L-L
- 400-400 V
- Nominal voltage (Un) N-L
- 230-230 V
- Frequency
- 45-65 Hz
- Sampling frequency
- 1900 Hz
- Pulse rate
- 1000-1000 Imp/kWh (kvarh)
- Refresh time
- 0.75 s
- Pole type
- Three conductor/four conductor
- Type of display
- LCD
Construction
- Terminal type
- Screw
- Mounting method
- DIN rail
- Material housing
- Nylon
- With lock code
- Yes
- Degree of protection (IP), front side
- IP50
Communication
- Tariff control
- External
- Tariff type
- Multi-tariff
- Pulse output
- Optic
Dimensions
- Height
- 90 mm
- Width
- 71.6 mm
- Depth
- 66.3 mm
- Weight
- 0.4 kg
- Width in number of modular spacings
- 4
Environment
- Operating temperature
- -25...55 °C
- Storage temperature
- -30...70 °C
