Product image is indicative only and provided as a guide.
Steute

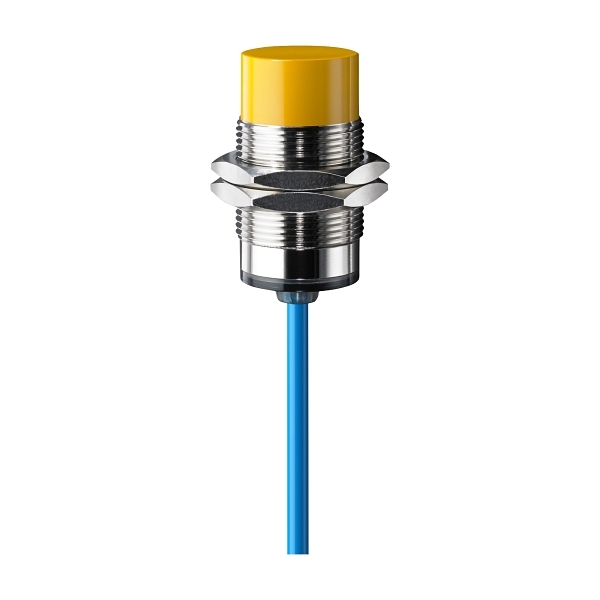

Steute HAE Sensor Ex 1,2,21,22 i Inductive Sensor SS Namur 15mm Sensing Distance 2m
- Item No.:
- EEXISM30NB15ABBAB
- Product Range:
- HAE Limit Switch
Download product datasheet
Electrical
- Type of actuation
- Metallic Target
- Switching distance
- 15 mm
- Voltage type
- DC
- Rated control supply voltage Us at DC
- 8.2-8.2 V
- Max. output current at protected output
- 3 mA
- Type of switch function
- Other
- Type of switching output
- NAMUR
- Switching frequency
- 500 Hz
- Type of electric connection
- Cable
Construction
- Construction type housing
- Cylinder, screw-thread
- Material housing
- Stainless steel
- IP rating
- IP68
- Coating housing
- Other
- Cascadable
- No
- Compression-resistant
- No
- Suitable for safety functions
- No
Dimensions
- Diameter sensor
- 30 mm
- Length of sensor
- 45 mm
- Cable length
- 2 m
- Weight (cable excluded)
- 146 g
Mechanical
- Mechanical mounting condition for sensor
- Not flat
Environment
- Storage temperature
- -25...60 °C
Certificates/Approvals
- SIL according to IEC 61508
- None
- Explosion safety category for gas
- Other
- Explosion safety category for dust
- Other
Communication
- Type of interface
- None
