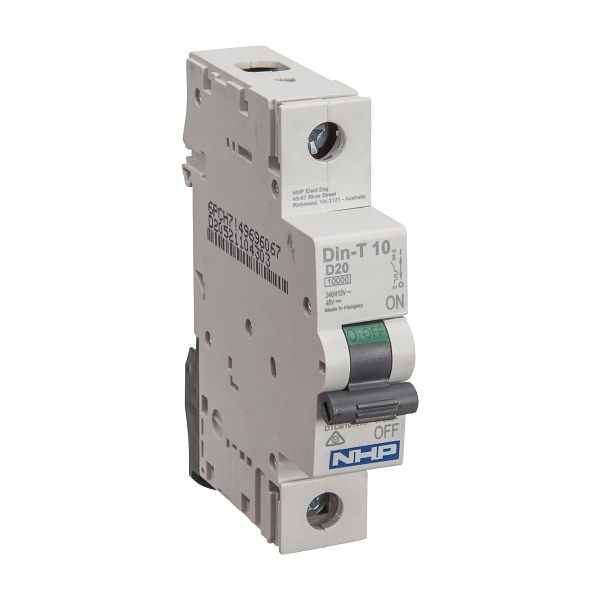

Product image is indicative only and provided as a guide.
NHP DIN-T
NHP DIN-T Miniature Circuit Breaker 10kA 1Pole 0.5A D Curve
- Item No.:
- DTCB10105D
- Product Range:
- DIN-T MCB
Download product datasheet
Popular Accessories
Electrical
- Rated current
- 0.5 A
- Number of poles (total)
- 1
- Trip curve
- D
- Rated voltage
- 240 V
- Frequency
- 50-60 Hz
- Voltage type
- AC/DC
- Service voltage Ub, AC
- 12 V
- Service voltage Ub, DC
- 12 V
- Nominal operating voltage Un, DC
- 48 V
Environment
- Pollution degree
- 3
- Rated surrounding temperature without derating
- 30 °C
- Rated temperature
- -25...70 °C
Dimensions
- Height
- 86 mm
- Width
- 18 mm
- Depth
- 76 mm
- Width in number of modular spacings
- 1
- Weight
- 0.12 kg
Mechanical
- Connectable conductor cross section solid-core
- 1-35 mm²
- Connectable conductor cross section multi-wired
- 1-25 mm²
Construction
- Number of protected poles
- 1
- IP rating
- IP40
