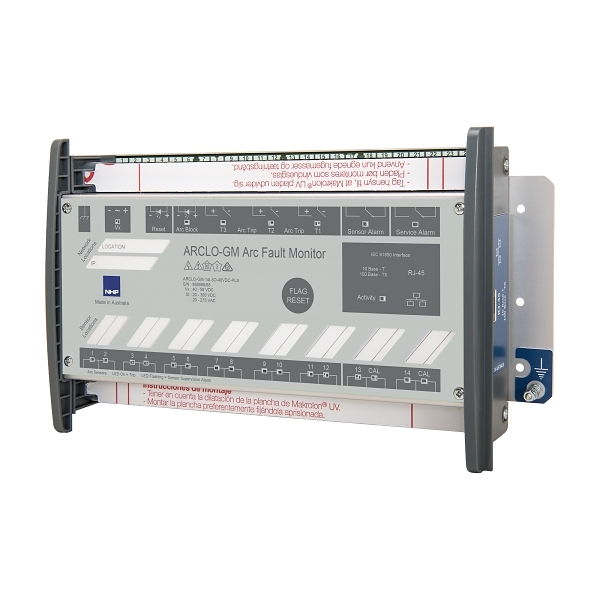

NHP Arclogix Optical GM Arc Detection Relay 14I 3O 24V DC
- Item No.:
- ARCLOGM14I3O24VDCPLS
- Product Range:
- Arclogix
Download product datasheet
Electrical
- Voltage type for actuating
- AC/DC
- Rated control supply voltage Us at AC 50HZ
- 20-70 V
- Rated control supply voltage Us at DC
- 24-58 V
- Max. flash to trip duration
- 2.2 ms
- Number of inputs
- 14
- Number of contacts as normally open contact
- 3
Construction
- Mounting method
- DIN rail
Dimensions
- Height
- 310 mm
- Width
- 177.4 mm
- Depth
- 64 mm
Environment
- Operating temperature
- -10...55 °C
- Storage temperature
- -25...70 °C
