Product image is indicative only and provided as a guide.
Socomec

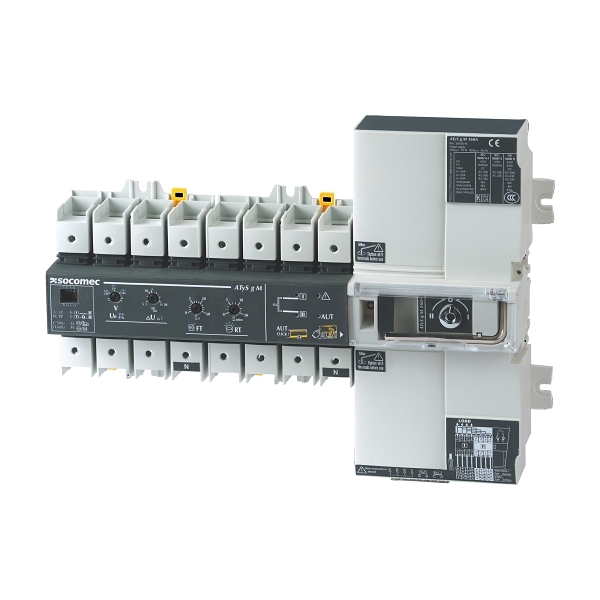

Socomec ATyS M Automatic Transfer Switch - ATyS gM, Basic Integrated Logic, 4 Pole 63A
- Item No.:
- 93544006
- Product Range:
- ATyS M Automatic
Download product datasheet
Electrical
- Rated operating voltage Ue
- 800 V
- Max. rated operation voltage Ue AC
- 800 V
- Rated permanent current at AC-21, 400 V
- 63 A
- Rated control supply voltage Us at AC 50HZ
- 400-690 V
- Rated uninterrupted current Iu
- 63 A
- Number of poles
- 4
- Rated operation power at AC-23, 400 V
- 30 kW
- Rated short-time withstand current lcw
- 4 kA
- Rated insulation voltage Ui
- 600 V
Construction
- Device construction
- Built-in device fixed built-in technique
- Colour control element
- Other
- Degree of protection (IP), front side
- IP20
- Version as main switch
- Yes
- Version as maintenance-/service switch
- Yes
- Version as safety switch
- Yes
- Version as emergency stop installation
- No
- Version as reversing switch
- Yes
- Number of switches
- 2
Mechanical
- Padlock locking
- Yes
Dimensions
- Height
- 245 mm
- Width
- 324 mm
- Depth
- 73.5 mm
- Weight
- 4.34 kg
