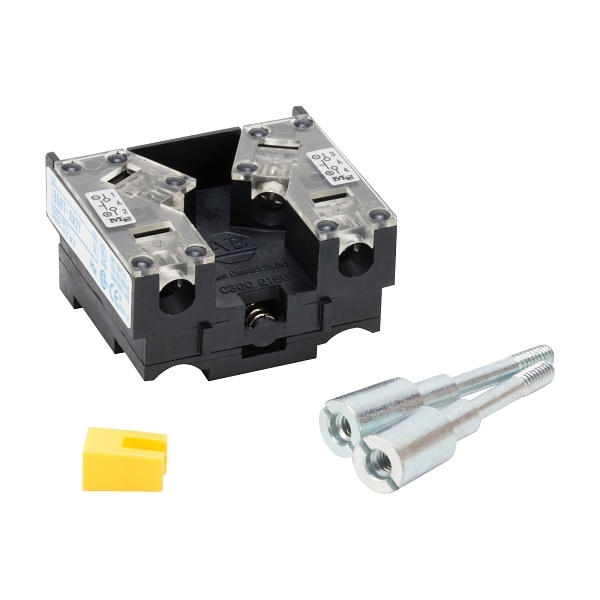

Product image is indicative only and provided as a guide.
Allen-Bradley
Allen-Bradley 800T Contact Block Stackable Sealed Switch 1 Open Contact for 30.5mm Pushbutton
- Item No.:
- 800TXD1Y
- Product Range:
- 800T/H Pushbutton
Download product datasheet
Electrical
- Number of contacts as normally open contact
- 1
- Rated insulation voltage Ui
- 300 V
- Rated operation current Ie at 40 °C Tu
- 5 A
- Rated operation current Ie at AC-15, 120 V
- 3 A
- Rated operation current Ie at AC-15, 240 V
- 1.5 A
- Rated operation current Ie at DC-13, 24 V
- 2.5 A
- Rated operation current Ie at DC-13, 125 V
- 0.55 A
- Min. contact rating current
- 10 mA
- Min. contact rating voltage
- 5 V
