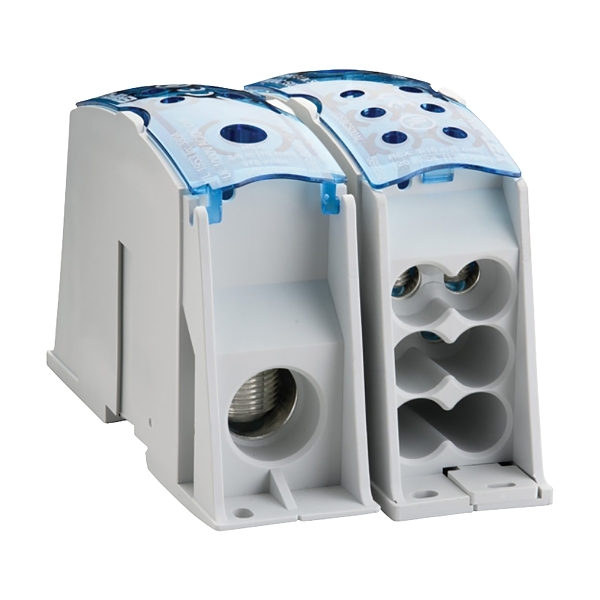

Product image is indicative only and provided as a guide.
nVent ERIFLEX
nVent ERIFLEX Distribution Blocks Active Link 1010A Input 2 x 95 to 185mm Output 12 x 4 to 25mm
- Item No.:
- 569205
- Product Range:
- Distribution Block
Download product datasheet
Popular Accessories
Electrical
- Number of poles
- 1
- Rated insulation voltage Ui
- 1000 V
- Short time withstand current Icw, 1 sec
- 42.9 kA
- Max. rated current
- 630 A
Dimensions
- Conductor cross section (solid, stranded)
- 4-25 mm²
- Height
- 78 mm
- Width
- 44 mm
- Depth
- 127 mm
Construction
- Conductor material
- Aluminium/copper
- With PE-rail
- No
- With N-rail
- No
