Product image is indicative only and provided as a guide.
nVent ERIFLEX

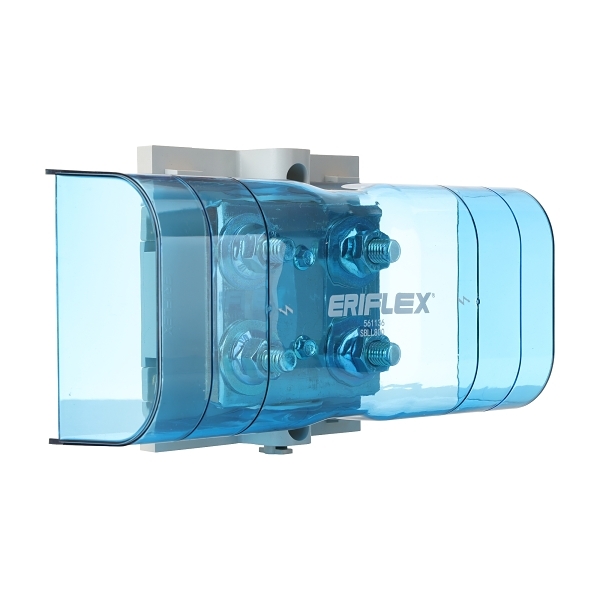

nVent ERIFLEX High Current Terminal 670A In 1 x 95 to 240mm Out 2 x 35 to 120mm AL
- Item No.:
- 561166
- Product Range:
- High Current Terminal
Download product datasheet
Popular Accessories
Electrical
- Number of poles
- 1
- Rated insulation voltage Ui
- 1000 V
- Short time withstand current Icw, 1 sec
- 28.8 kA
- Max. rated current
- 670 A
Dimensions
- Conductor cross section flexible (fine-strand) with cable end sleeve
- 120-35 mm²
- Conductor cross section (solid, stranded)
- 35-120 mm²
- Height
- 146.4 mm
- Width
- 41.5 mm
- Depth
- 82.2 mm
Construction
- Conductor material
- Aluminium/copper
- With PE-rail
- No
- With N-rail
- No
