Socomec

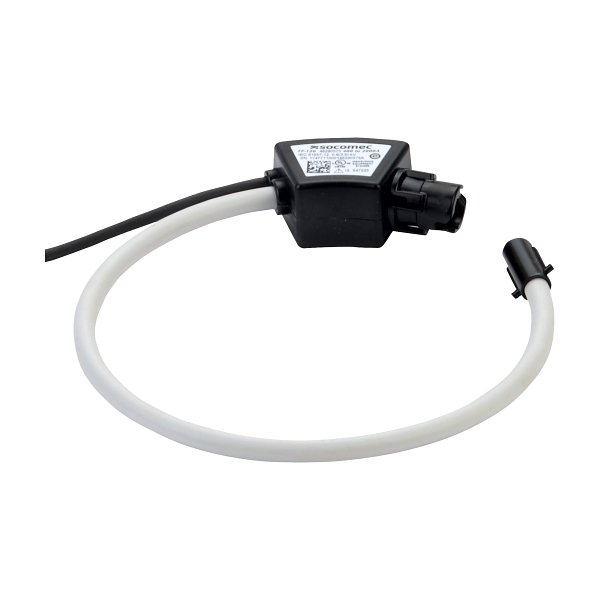

Socomec TF-80 Rogowski Coil CT 150-600A 80mm Diameter for Digiware and DIRIS A-xx
- Item No.:
- 48290574
- Product Range:
- TF Rogowski Coil
Download product datasheet
Popular Accessories
Construction
- Current transformer type
- Split core
- Material housing
- Plastic
- Model
- Attachable current transformer
- With shock protection
- Yes
- Snap mounting
- Yes
- With copper rail
- Yes
- Secondary connection
- Plug-in connection
- Number of primary inputs
- 1
Electrical
- Primary rated current
- 600 A
- Secondary current on CT
- 0.1 A
- Rated operating frequency
- 50-60 Hz
- Max. operating voltage (Umax)
- 600 V
- Accuracy class
- 0.2S
- Over current limiting factor
- FS 10
- Secondary rated apparent power
- 0.1 VA
- Calibrated
- Yes
Environment
- Storage temperature
- -25...85 °C
Dimensions
- Opening diameter
- 80 mm
- Height opening
- 80-80 mm
- Width opening
- 80-80 mm
