Socomec

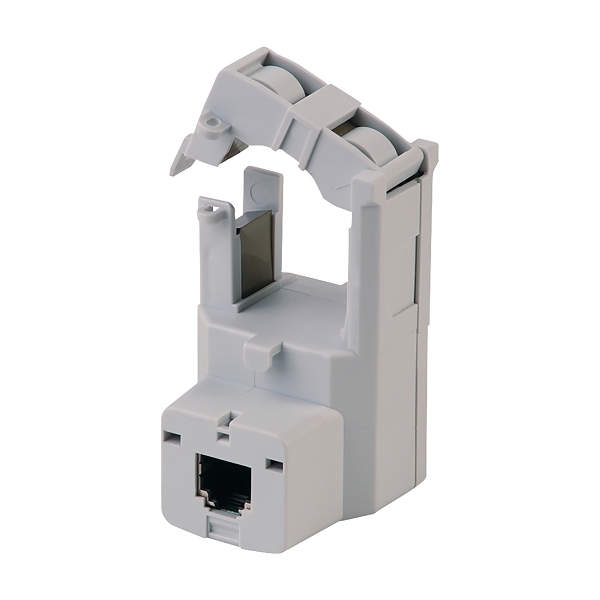

Socomec TR-21 Split Core CT 63-250A 21 x 23mm for Digiware and DIRIS A-xx
Item No. 48290557
Product Range: TR/iTR Split Core
Component Type (ETIM Class)
Current transformer
Electrical
Primary rated current250 A
Secondary current on CT0.1 A
Rated operating frequency50-60 Hz
Max. operating voltage (Umax)300 V
Accuracy class0.5
Over current limiting factorFS 10
Secondary rated apparent power0.1 VA
CalibratedYes
Construction
Current transformer typeSplit core
Material housingPlastic
ModelAttachable current transformer
With shock protectionYes
Snap mountingYes
With copper railYes
Secondary connectionPlug-in connection
Number of primary inputs1
Dimensions
Opening diameter21 mm
Height opening21-21 mm
Width opening21-21 mm
Environment
Storage temperature-25-85 °C
