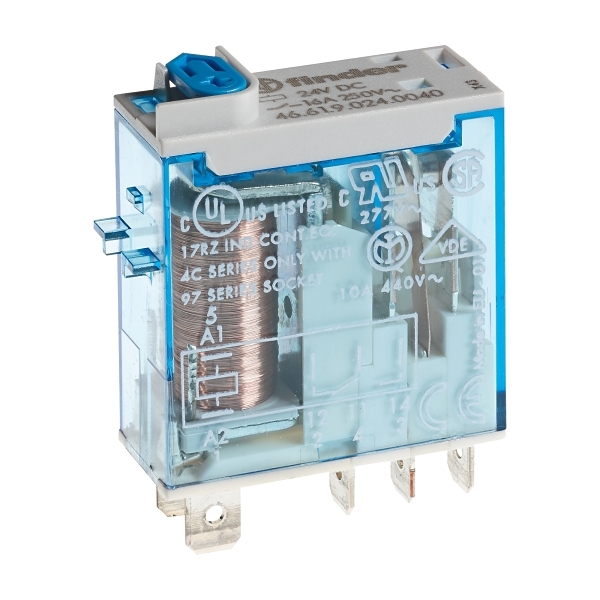

Product image is indicative only and provided as a guide.
Finder
Finder 46 Series Miniature Relay 16A 1 CO 24V DC Coil with PB plus LED plus Mech. Indicator
- Item No.:
- 4661007424VDC
- Product Range:
- Panel Mount and Power Relay
Download product datasheet
Electrical
- Nominal current
- 16 A
- Nominal voltage AC
- 250 V
- Max. rated operation voltage Ue AC
- 440 V
- Number of contacts as change-over contact
- 1
- Drive, switching attitude
- Mono stable
- Rated switching power at AC-1
- 4000 VA
- Rated switching power at AC-15, 230V
- 750 VA
- Breaking capacity at DC-1, 30V
- 12 A
- Breaking capacity at DC-1, 110V
- 0.5 A
Construction
- Material contact
- Silver nickel
- With mechanical indicator
- Yes
- With latching test button
- Yes
- Suitable for plug-in socket mounting
- Yes
Dimensions
- Width
- 12.4 mm
- Height
- 29 mm
- Depth
- 32.8 mm
Mechanical
- Mechanical life (service cycles)
- 10000000 cycles
- Max. shock acceleration
- 20 g
- Max. shock duration
- 4 ms
- Max. vibration acceleration
- 20 m/s²
- Max. vibration frequency, operational
- 150 Hz
Environment
- Operating temperature
- -40...70 °C
