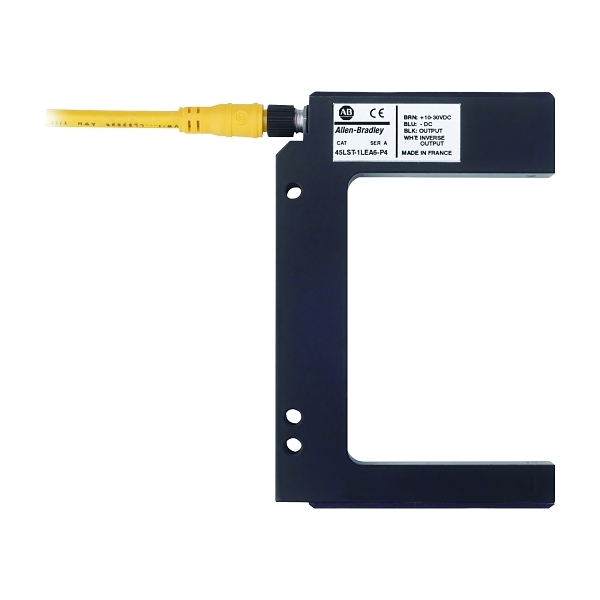

Product image is indicative only and provided as a guide.
Allen-Bradley
Allen-Bradley 45L Photoelectric Sensor 30mm Sensing Gap 45LST Optical Fork Sensor 4 Pin Pico QD
- Item No.:
- 45LST1LEA3P4
- Product Range:
- Photoelectric Sensors
Download product datasheet
Photometric
- Sensing type
- Transmitted beam emitter & receiver pair
- Type of light
- Infrared light
- Max. switching distance
- 30 mm
- Sensing mode
- Light-/dark switching
- Wavelength of the sensor
- 880 nm
Construction
- Material housing
- Metal
- Construction type housing
- Special construction
- IP rating
- IP65
- With reflector
- No
- Suitable for safety functions
- No
Dimensions
- Height of sensor
- 65 mm
- Width sensor
- 60 mm
- Length of sensor
- 12 mm
- Frame opening lengthwise
- 30 mm
Electrical
- Setting procedure
- Manual adjustment
- Voltage type
- DC
- Rated control supply voltage Us at DC
- 10-30 V
- Type of switching output
- PNP/NPN
- Max. output current
- 100 mA
- Response time
- 1 ms
- Type of electric connection
- Connector M8
- Number of protected semiconductor outputs
- 1
- Type of switch function
- Other
Environment
- Ambient temperature
- -20...60 °C
Mechanical
- With time function
- Yes
