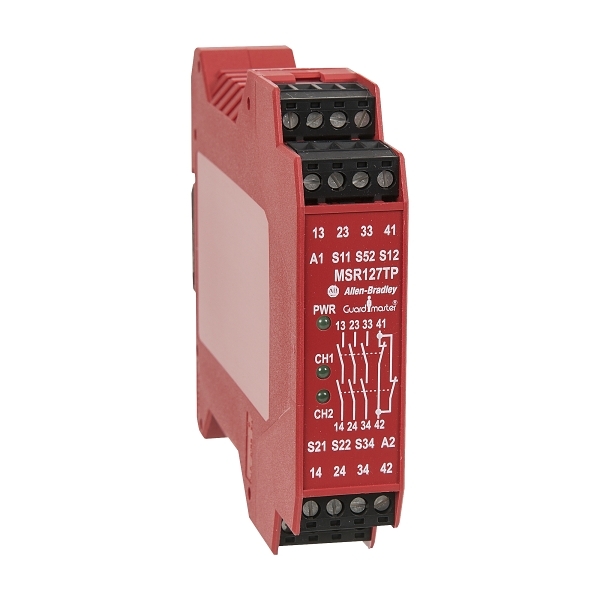

Product image is indicative only and provided as a guide.
Allen-Bradley
AB 440R MSR Safety Relay Single Function 115VAC 1NC/2NC/LC/SM-IN 3NO-SFTY 2NC/2SS-AUX AM/MM
- Item No.:
- 440RC23137
- Product Range:
- MSR
Download product datasheet
Electrical
- Rated operation current Ie
- 6 A
- Rated operation current Ie at AC-15, 230 V
- 6 A
- Rated operation current Ie at DC-13, 24 V
- 3 A
- Voltage type for actuating
- AC
- Control supply voltage Us at AC 50HZ
- 115 V
- Safety category according to EN ISO 13849-1
- 4
- Type of electric connection
- Screw connection
- Number of outputs, safety related, undelayed, with contact
- 3
Construction
- Performance level according to EN ISO 13849-1
- Level e
- Rail mounting possible
- Yes
- IP rating
- IP40
- Degree of protection (IP), terminals
- IP20
Dimensions
- Width
- 45 mm
- Height
- 99 mm
- Depth
- 114.5 mm
- Weight
- 0.45 kg
Environment
- Rated temperature
- -5...55 °C
Mechanical
- Max. shock acceleration
- 10 g
- Max. vibration displacement (Pk-Pk)
- 0.35 mm
- Max. vibration frequency, operational
- 55 Hz
