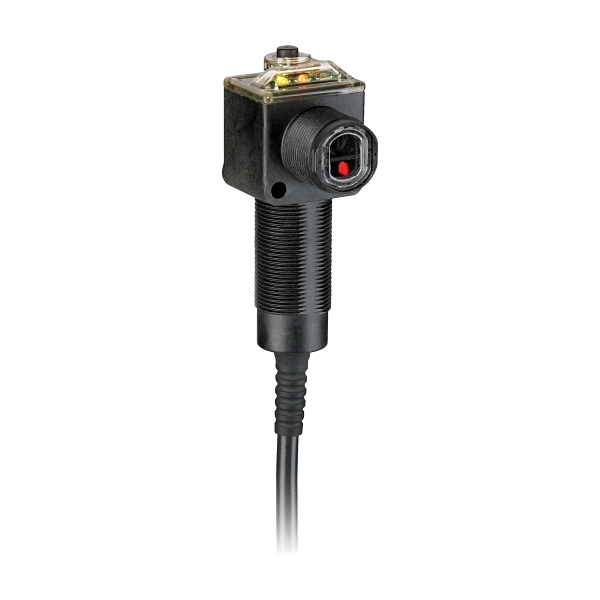

Product image is indicative only and provided as a guide.
Allen-Bradley
Allen-Bradley 42EF Photoelectric Sensor Polarized Retro 11-30V DC Range 25mm-3m PNP/NPN DC Micro 4
- Item No.:
- 42EFP2MPBF4
- Product Range:
- Photoelectric Sensors
Download product datasheet
Photometric
- Sensing type
- Polarised retroreflective
- Type of light
- Other
- Illumination mode
- Other
- Wavelength of the sensor
- 660 nm
- Beam angle
- 1.5 °
- Max. switching distance
- 3000 mm
- Sensing mode
- Light-/dark switching
Construction
- Material of optical surface
- Plastic
- Material housing
- Other
- Construction type housing
- Special construction
- IP rating
- IP67
- Degree of protection (NEMA)
- 6P
Dimensions
- Width sensor
- 27 mm
- Height of sensor
- 46.7 mm
- Length of sensor
- 34.5 mm
Electrical
- Setting procedure
- Other
- Voltage type
- DC
- Rated control supply voltage Us at DC
- 10.8-30 V
- Type of switching output
- PNP
- Max. output current
- 100 mA
- Response time
- 1 ms
- Type of electric connection
- Connector M12
Environment
- Ambient temperature
- -25...70 °C
Mechanical
- With time function
- No
