Allen-Bradley

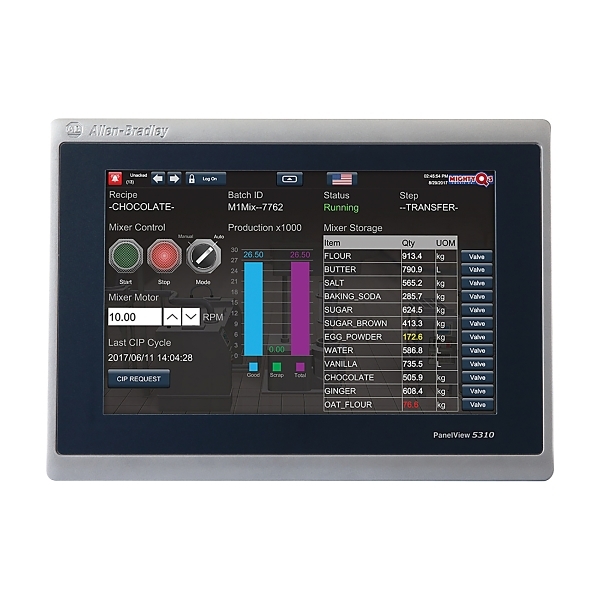

Allen-Bradley PanelView 5000 5310 Terminal 7Inch Touch Widescreen Colour EtherNet 24V DC
- Item No.:
- 2713PT7WD1
- Product Range:
- PanelView 5000
Download product datasheet
Construction
- Screen diagonal
- 7 inch
- With numeric keyboard
- No
- Degree of protection (IP), front side
- IP66
- Number of grey-scales/blue-scales of display
- 0
- With alpha numeric keyboard
- No
- Number of function buttons, programmable
- 0
- Number of buttons with LED
- 0
- Number of system buttons
- 0
- Process value representation (output) possible
- Yes
Electrical
- Voltage type of supply voltage
- DC
- Supply voltage DC
- 18-30 V
- Type of display
- TFT
- Touch technology
- Resistive touch
Photometric
- With colour display
- Yes
Communication
- Number of HW-interfaces industrial Ethernet
- 1
- Number of HW-interfaces RS-422
- 0
- Number of HW-interfaces RS-485
- 0
- Number of HW-interfaces serial TTY
- 0
- Number of HW-interfaces parallel
- 0
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for EtherNet/IP
- Yes
Dimensions
- Width of the front
- 237 mm
- Height of the front
- 178 mm
- Built-in depth
- 69.5 mm
Environment
- Operating temperature
- 0-50 °C
