Allen-Bradley

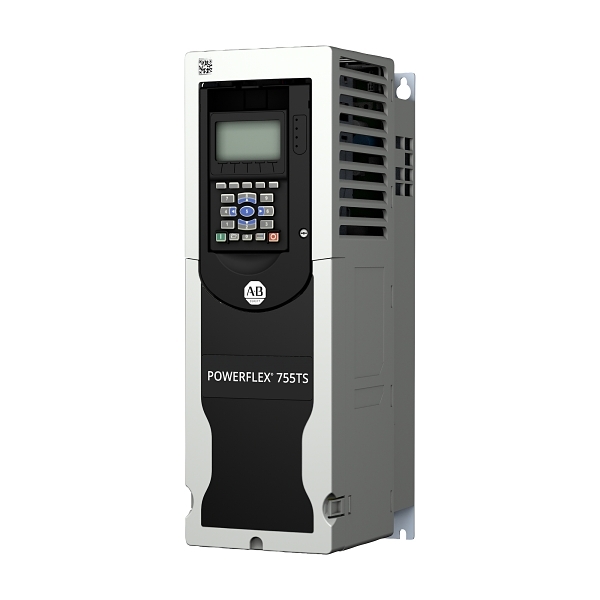

Allen-Bradley PowerFlex 755TS VSD 480V IP54 ND 14A 10HP or HD 11A 7.5HP Frame 2
- Item No.:
- 20G21GD014JA0NNNNN
- Product Range:
- PowerFlex 755T
Download product datasheet
Electrical
- Number of phases input
- 3
- Nominal input voltage
- 480 V
- Nominal output power AC
- 7.4 kW
- Nominal output current I2N
- 14 A
- kW rating, normal duty
- 7.5 kW
- kW rating, heavy duty
- 5.5 kW
- Dynamic braking transistor
- Yes
- Control characteristic
- PID
- EMC-version
- Yes
Construction
- Suitable for safety functions
- Yes
- Contains keypad
- Yes
- Frame size
- 2
- IP rating
- IP54
- Degree of protection (NEMA)
- 12
Communication
- Integrated motion function
- No
Dimensions
- Height
- 543.2 mm
- Width
- 216.5 mm
- Depth
- 225.6 mm
- Weight
- 8 kg
Environment
- Operating temperature
- -20...60 °C
- Storage temperature
- -40...70 °C
