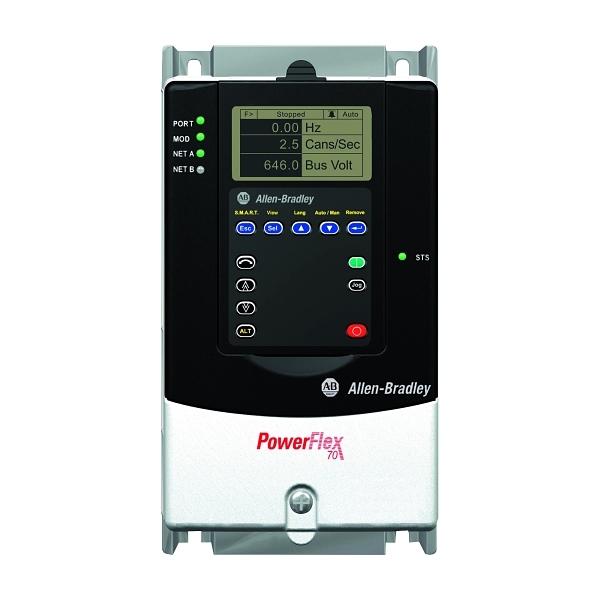

Product image is indicative only and provided as a guide.
Allen-Bradley
Allen-Bradley PowerFlex 70 VSD 400V IP20 5.0A 2.2kW ND or 3.5A 1.5kW HD
- Item No.:
- 20AC5P0A0AYNANC0
- Product Range:
- PowerFlex 70
Download product datasheet
Electrical
- Number of phases input
- 3
- Nominal input voltage
- 415 V
- Nominal output power AC
- 2.2 kW
- Nominal output current I2N
- 5 A
- kW rating, normal duty
- 2.2 kW
- kW rating, heavy duty
- 1.5 kW
- Number of phases output
- 3
- Mains frequency
- 50 Hz
- Dynamic braking transistor
- Yes
Construction
- Suitable for safety functions
- Yes
- Contains keypad
- No
- Number of digital inputs
- 6
- Number of digital outputs
- 2
- Number of analogue inputs
- 2
- Number of analogue outputs
- 1
- Frame size
- B
- IP rating
- IP20
- Relative symmetric net voltage tolerance
- 10 %
Communication
- Number of HW-interfaces RS-485
- 2
- Supporting protocol for EtherNet/IP
- Yes
- Supporting protocol for Modbus
- Yes
- Supporting protocol for DeviceNet
- Yes
- Supporting protocol for TCP/IP
- Yes
- Supporting protocol for PROFIBUS
- Yes
- Supporting protocol for CAN
- Yes
- Number of HW-interfaces RS-232
- 2
- Number of HW-interfaces USB
- 2
Dimensions
- Height
- 239.8 mm
- Width
- 171.7 mm
- Depth
- 203.3 mm
- Weight
- 3.61 kg
