Product image is indicative only and provided as a guide.
Allen-Bradley

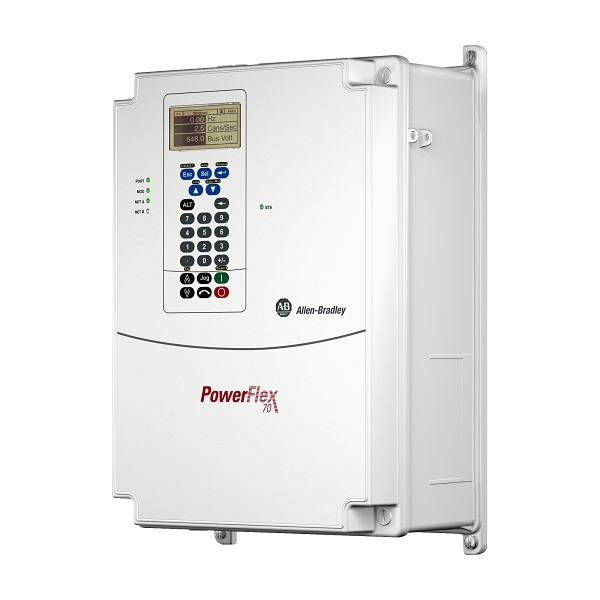

Allen-Bradley PowerFlex 70 VSD 400V IP66 15A 7.5kW ND or 11.5A 5.5kW HD
- Item No.:
- 20AC015C3AYNANC0
- Product Range:
- PowerFlex 70
Download product datasheet
Electrical
- Number of phases input
- 3
- Nominal input voltage
- 415 V
- Nominal output power AC
- 7.5 kW
- Nominal output current I2N
- 15.4 A
- kW rating, normal duty
- 7.5 kW
- kW rating, heavy duty
- 5.5 kW
- Number of phases output
- 3
- Mains frequency
- 50 Hz
- Dynamic braking transistor
- Yes
Construction
- Suitable for safety functions
- Yes
- Number of digital inputs
- 6
- Number of digital outputs
- 2
- Number of analogue inputs
- 2
- Number of analogue outputs
- 1
- Frame size
- D
- IP rating
- IP66
- Relative symmetric net voltage tolerance
- 10 %
- With control element
- Yes
Communication
- Number of HW-interfaces RS-485
- 2
- Supporting protocol for EtherNet/IP
- Yes
- Supporting protocol for Modbus
- Yes
- Supporting protocol for DeviceNet
- Yes
- Supporting protocol for TCP/IP
- Yes
- Supporting protocol for PROFIBUS
- Yes
- Supporting protocol for CAN
- Yes
- Number of HW-interfaces RS-232
- 2
- Number of HW-interfaces USB
- 2
Dimensions
- Height
- 300 mm
- Width
- 185 mm
- Depth
- 179.8 mm
- Weight
- 6.89 kg
